O2U530 \ effector 250 \ Object recognition \ O2URRDKG/E1/E2/E4/IO/EF/GM/S/5A \ DE \

Details of O2U530 \ efector 250 \ Object recognition \ O2URRDKG/E1/E2/E4/IO/EF/GM/S/5A \ DE \

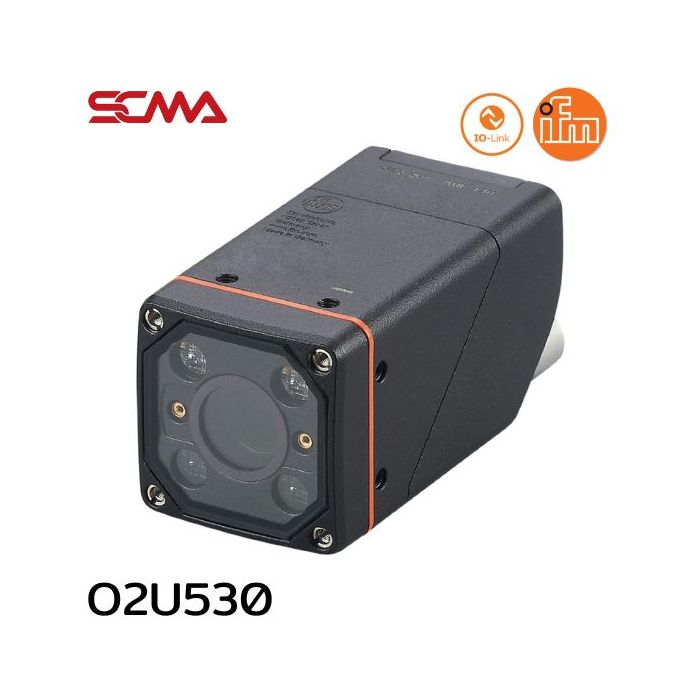

O2U530 \ efector 250 \ Object recognition \ O2URRDKG/E1/E2/E4/IO/EF/GM/S/5A \ DE \ comes with an object detection sensor using barcode and 2D code reading methods. It supports communication protocols such as ProfiNet, EtherNet/IP, and a two-dimensional image sensor that allows for surface analysis, shape recognition, and the reading of codes and characters. This makes it versatile in interfacing and easy to use with controllers, thanks to application creation software and removable memory.

Technical Data O2U530 \ efector 250 \ Object recognition \ O2URRDKG/E1/E2/E4/IO/EF/GM/S/5A \ DE \

• Type of light : red light
• Image resolution[px] : 1280 x 960
• Max. reading rate [Hz] : 40
• Operating voltage[V] : 18...30 DC
• Wave length[nm] : 617
• Parameter setting : options Multi-function button; via PC with ifm Vision Assistant
• Image sensor : CMOS image sensor black/white
• Number of digital outputs : 2
• Electrical design : PNP/NPN
• Ambient temperature[°C] : -10...50
• Protection : IP 65
• Dimensions[mm] : 45 x 45 x 96
• Electrical connection - Ethernet : Connector M12
• Electrical connection - supply : Connector M12
