MVQ101 efector 180 Valve sensor BASIC IO-LINK DE

Details of MVQ101 \ efector 180 \ Valve sensor (Valve position detector) BASIC IO-LINK \ DE

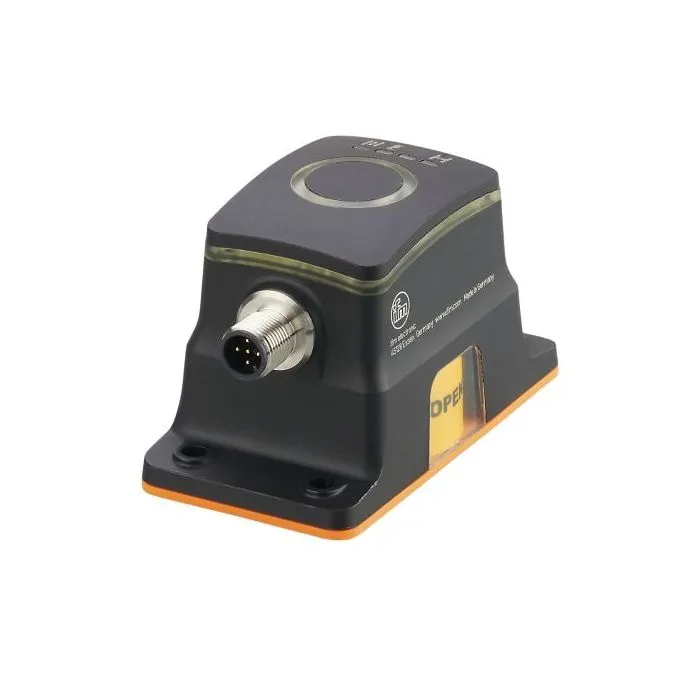

MVQ101 \ efector 180 \ Valve sensor (Valve position detector) BASIC IO-LINK \ DE Valve status open-close sensor

• With the IO-Link system, easy to set up for use can configure the sensor settings and select Output NO/NC functions as desired.
• Easily set or configure parameters via an IO-Link computer system.
• Has 3 outputs usable in 3 operating states.
• Can connect through the IO-Link system to view the angle of the active valve.
• Features 3-color LEDs indicating output status.
• PNP output operation.
• Operating voltage: 10...30 VDC
• Dimensions: 50x59x57 mm.
• Dust and water protection standards IP65/IP67

The MVQ101 \ efector 180 \ Valve sensor (Valve position detector) BASIC IO-LINK \ DE can be used to detect the working status of valve opening and closing, with clear visibility provided by 3-color LEDs. It is suitable for Actuator Valves controlling various pipeline openings and closings.

Technical Data MVQ101 \ efector 180 \ Valve sensor (Valve position detector) BASIC IO-LINK \ DE

• Communication interface : IO-Link
• Housing : rectangular
• Dimensions[mm] : 95 x 50 x 57
• Electrical design : PNP
• Output function : 3 x normally open / normally closed; (selectable)
• Operating principle : magnetic
• Application : angle of rotation detection absolute
• Operating voltage[V] : 10...30 DC
• Current consumption[mA] : < 40
• Protection class : III
• Reverse polarity protection : yes
• Max. power-on delay time[ms] : 300
