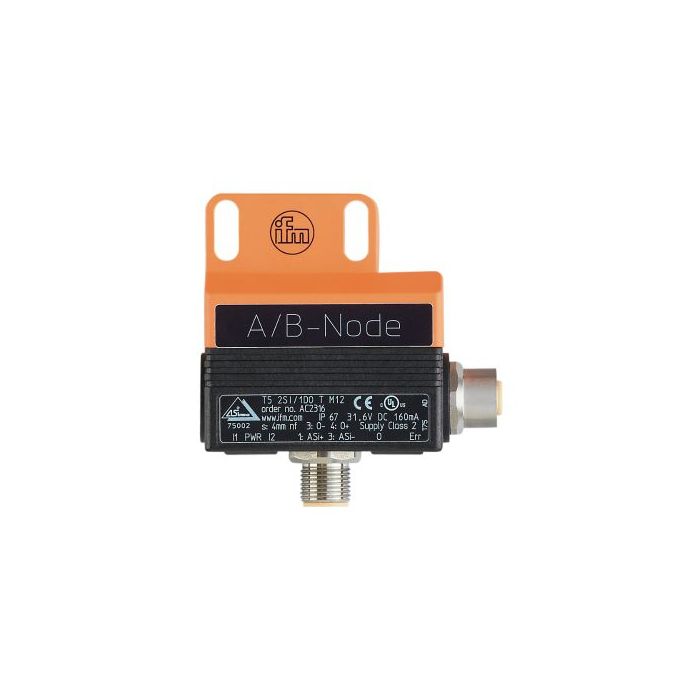

AC2316 EFCOTOR 180 VALVE SENSOR DUAL SENSOR T5 2SI 1DO T M12 DE

Details of AC2316 \ efector 180 \ Valve sensor (Valve position detector) \DUAL SENSOR T5 2SI 1DO T M12 \ DE

AC2316 \ efector 180 \ Valve sensor (Valve position detector) \DUAL SENSOR T5 2SI 1DO T M12 \ DE for valve position detection in the production process by ifm, functioning as a sensor for AS-interface system to ensure efficiency in industrial applications.

Features of AC2316 \ efector 180 \ Valve sensor (Valve position detector) \DUAL SENSOR T5 2SI 1DO T M12 \ DE

• Electrical design AS-i
• Sensing range[mm] 4
• Operating voltage[V] 26.5...31.6 DC; ("supply class 2" to cULus)
• Current consumption[mA] < 160
• Detection zone Sensing range[mm] 4
• Ambient temperature[°C] -20...70
• Protection IP67
• Weight[g] 179
• Mounting non-flush mountable
• Dimensions[mm] 55 x 60 x 35
• Materials PBT
