IN5225 \ efector 180 \ Valve sensor \ IND3004DBPKG/US-100-DPV \ DE

Details of IN5225 \ efector 180 \ Valve sensor (Valve position sensor) \IND3004DBPKG/US-100-DPV \ DE

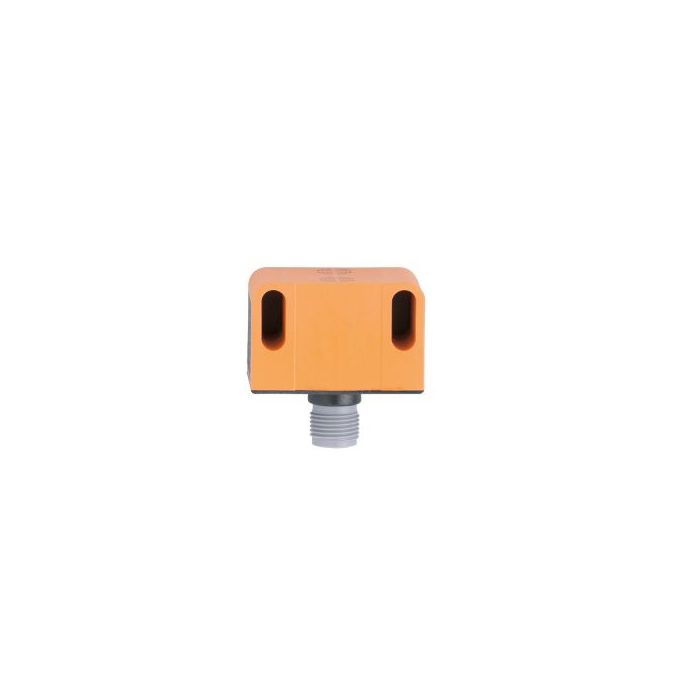

IN5225 \ efector 180 \ Valve sensor (Valve position sensors) is a proximity switch from ifm for use in detecting the open and closed positions of valves within a single unit, used to detect metal objects during industrial manufacturing processes.

Features of IN5225 \ efector 180 \ Valve sensor (Valve position sensor) \IND3004DBPKG/US-100-DPV \ DE

• Electrical design DC PNP
• Operating voltage [V] 10...36 DC
• Current consumption [mA] 15
• Protection class II
• Reverse polarity protection yes
• Sensing range [mm] 4
• Real sensing range (Sr) [mm] 4 ± 10 %
• Operating distance [mm] 0...3.25
• Correction factors mild steel = 1 / stainless steel approx. 0.7 / brass approx. 0.4 / Al approx. 0.3 / Cu approx. 0.2
• Hysteresis [% of Sr] 1...15
• Switch-point drift [% of Sr] -10...10
• Ambient temperature [°C] -25...80
• Protection IP 67
• Mounting non-flush mountable
• Housing materials PBT
• Tightening torque [Nm] 0.6...1.5 (knurled nut)
• Weight [kg] 0.04
