IN5409 \ efector 180 \ Valve sensor \ INE3004DBPKG \ DE

Details of IN5409 \ efector 180 \ Valve sensor (Valve position sensor) \INE3004DBPKG \ DE

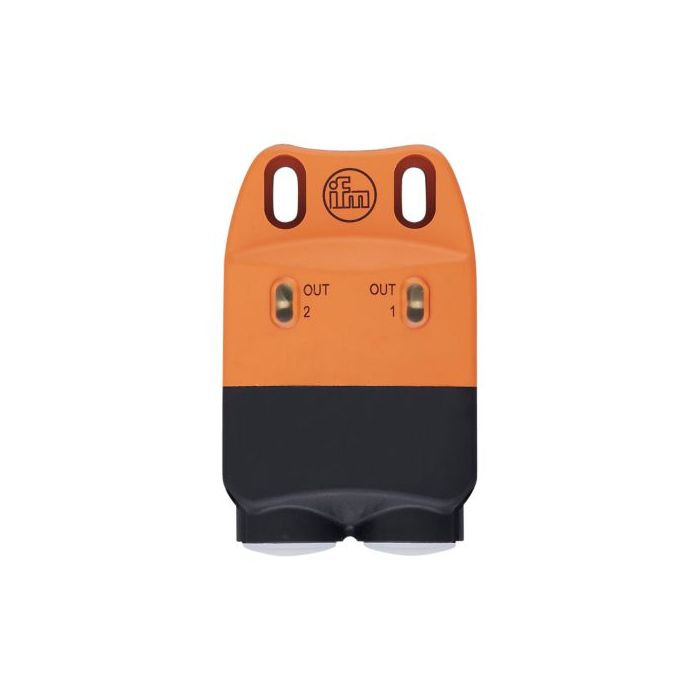

IN5409 \ efector 180 \ Valve sensor (Valve position sensors) from ifm is a proximity switch used to monitor the open-close position of valves. It contains two sensors in one unit, making it easy to install and highly efficient for industrial production processes.

Technical data IN5409 \ efector 180 \ Valve sensor (Valve position sensor) \INE3004DBPKG \ DE

• Electrical design PNP
• Output function 2 x normally open
• Sensing range[mm] 4
• Housing rectangular
• Operating voltage[V] 10...30 DC; (; to PELV)
• Current consumption[mA] 15; (a maximum of one output is switched)
• Protection class III
• Reverse polarity protection yes
• Sensing range[mm] 4
• Real sensing range Sr[mm] 4 ± 10 %
• Operating distance[mm] 0...3.25
• Weight[g] 152.7
• Housing rectangular
• Mounting non-flush mountable
• Dimensions[mm] 33 x 60 x 92
• Materials housing: PA; screws: stainless steel; washer: stainless stee
•
