KCT-3P-35, 200/5A KEPLER Current Transformer

Be the first to review this product
Special Price THB 800.00 Regular Price THB 1,000.00
In stock
SKU
034821
In stock: 21 pcs

Delivery within: 23/09/2569

🚚 Free shipping on orders over ฿2,500! (normally ฿100)

Add to Wish List Add to Compare

Current Transformer, Split Core Current Transformer, Clamp-On Current Transformer, External Mount Current Transformer, Outdoor Current Transformer, CT

*Price does not include VAT

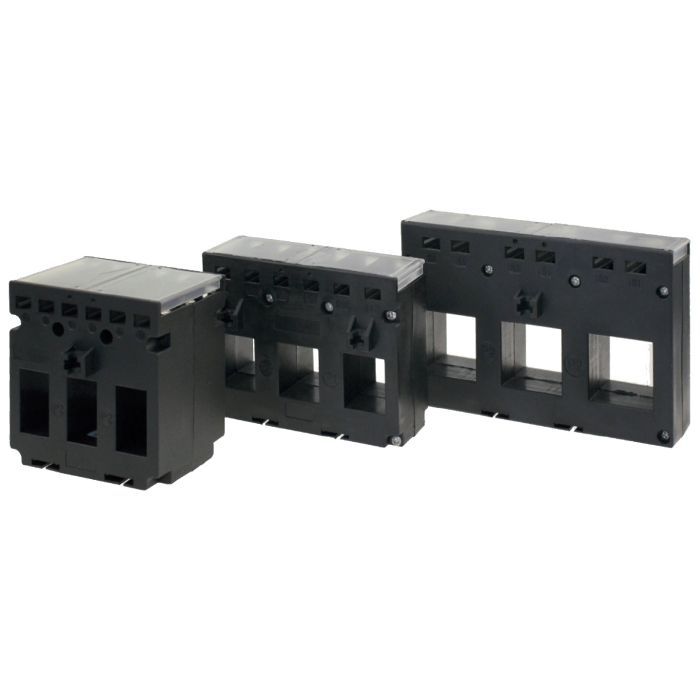

main product photo

Features of KEPLER Current Transformer Plug-in Type Model KCT-3P-35, 200/5A

  • It is a plug-in type current transformer for three-phase use in one unit.
  • Offers current ratings from 200/5A to choose from.
  • Easy, convenient and quick installation; can be mounted on DIN rail immediately.
  • Compact size, cost-effective.
  • High accuracy Class 1.0
  • Maximum operating voltage rating of 720VAC / 50-60Hz
  • Made from PC/UL94-V0 material.
  • Manufactured according to IEC/EN60044-1 standard.

Technical Data KEPLER Current Transformer Plug-in Type Model KCT-3P-35, 200/5A

  • Current rating 200/5A
  • Burden (VA) 1.5
  • Accuracy Class 0.5 from 20% to 120% of rated current
  • Frequency 50-60Hz
  • Phase angle Less than 2 degrees at 50% of rated current
  • Insulation voltage 600VAC
  • Maximum primary voltage 5000Vac (Insulated Conductor)
  • Dielectric strength 2.5kV / 1mA (1 min)
  • Operating temperature -15C~60⁰C
  • Operating humidity <85%
  • Case material PC / UL94-V0
  • Bobbin PBT
  • Internal structure Epoxy

KEPLER Current Transformer Plug-in Type Model KCT-3P-35, 200/5A
