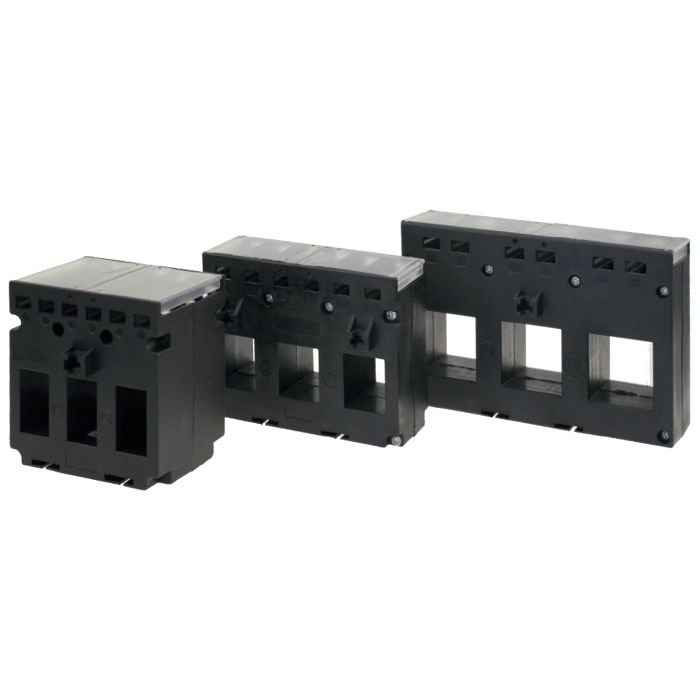

KCT-3P-35, 100/5A KEPLER Current Transformer
Special Price THB 800.00 Regular Price THB 1,000.00
In stock
SKU
034966
In stock: 24 pcs
Delivery within: 03/09/2569
🚚 Free shipping on orders over ฿5,000! (normally ฿100)
Current Transformer, Split Core Current Transformer, Clamp-On Current Transformer, External Mount Current Transformer, Outdoor Current Transformer, CT
*Price does not include VAT
Details of KEPLER Current Transformer Model KCT-3P-35, 100/5A
- A single unit three-phase current transformer type
- Current ratings available from 60/5A to 630/5A depending on installation requirements
- Easy and quick to install, can be mounted directly onto DIN rails
- Sleek compact size at an economical price point
- High accuracy Class 1.0
- Maximum operating voltage rating of 720VAC / 50~60Hz
- Made from PC/UL94-V0 material
- Manufactured to IEC/EN60044-1 standards
Tech Specifications KEPLER Current Transformer Model KCT-3P-35, 100/5A
- Current Rating : 100/5
- Accuracy : Class 0.5 from 20% to 120% of rated current
- Frequency : 50~60Hz
- Phase angle : Less than 2 degrees at 50% of rated current
- Insulation voltage : 600VAC
- Maximum primary voltage : 5000Vac (Insulated Conductor)
- Dielectric strength : 2.5kV / 1mA (1 min)
- Operating temperature : -15C~60°C
- Operating humidity : <85%
- Casematerial : PC / UL94-V0
- Bobbin : PBT
- Internal structure : Epoxy
| จำนวนวันจัดส่ง | 3 วัน |
|---|---|
| Special Price | THB 800.00 |
