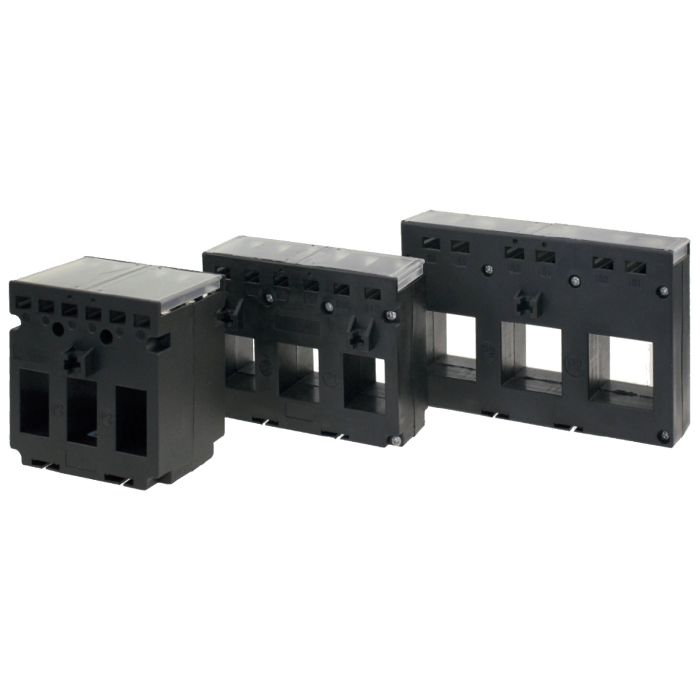

KCT-3P-35, 250/5A KEPLER Current Transformer

Features of KEPLER Current Transformer Plug-in Type Model KCT-3P-35, 250/5A

• It is a plug-in type current transformer for 3-phase in one unit.
• Current rating options range from 250/5A.
• Easy to install, convenient and quick, can be mounted on DIN rail immediately.
• Compact size, cost-effective.
• High accuracy Class 1.0
• Maximum operating voltage 720VAC / 50-60Hz
• Made from PC/UL94-V0 material.
• Complies with IEC/EN60044-1 standards.

Technical Data KEPLER Current Transformer Plug-in Type Model KCT-3P-35, 250/5A

• Current rating 250/5A
• Burden (VA) 1.5
• Accuracy Class 0.5 from 20% to 120% of rated current
• Frequency 50-60Hz
• Phase angle Less than 2 degrees at 50% of rated current
• Insulation voltage 600VAC
• Maximum primary voltage 5000Vac (Insulated Conductor)
• Dielectric strength 2.5kV / 1mA (1 min)
• Operating temperature -15C~60⁰C
• Operating humidity <85%
• Casematerial PC / UL94-V0
• Bobbin PBT
• Internal structure Epoxy
