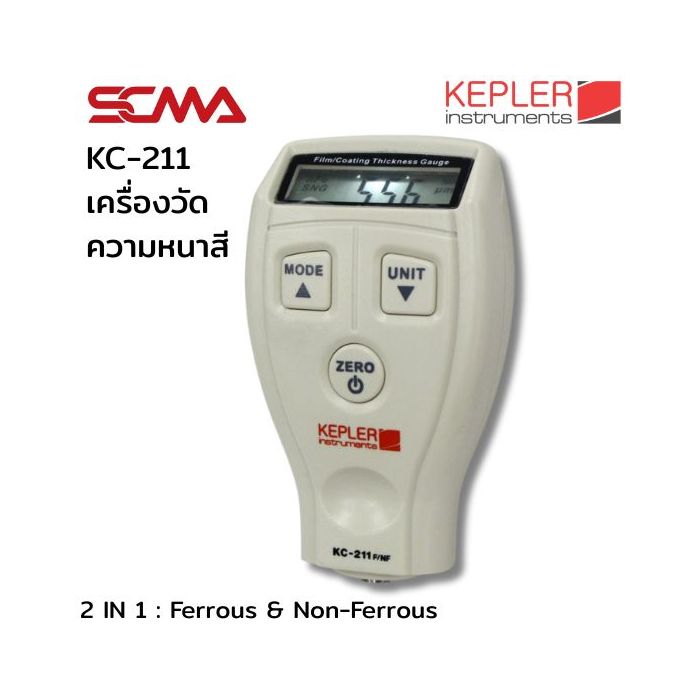

KC-211 KEPLER Coating Thickness Gauge

Details of KC-211 KEPLER Coating Thickness Gauge

KC-211 KEPLER Coating Thickness Gauge, 2 IN 1: Ferrous & Non-Ferrous. Stand out with the ability to select measurement modes up to 3 types: point mode, continuous mode, or difference mode. You can trust this device.

• Coating Thickness Gauge, 2 IN 1: Ferrous & Non-Ferrous
• Wide Measurement Range: 0~1500 µm
• The Automatic Identification System will automatically specify the probe selection suitable for materials
• Select measurement modes up to 3 types: point mode, continuous mode, and difference mode
• Can perform Zero, One-point, and Two-point calibration
• Select units of measurement as µm, mil, mm
• LCD display with Backlight
• Auto power off when not in use
• Used for machinery manufacturing plants, metal industry, chemical industry, plating, painting, etc.

Techincal Data KC-211 KEPLER Coating Thickness Gauge

• Measurement Range : 0~1500µm / 0~59mil / 0~1.5mm
• Accuracy : ≤ 150µm ±2%rdg+3µm / ≥ 150µm ±3%rdg+1µm
• Resolution : 0.1µm (<100µm) / 1uM (100µm) / 0.1mil / 0.001mm
• Minimum diameter of substrate : Magnetic Ø12mm / Non-Magnetic Ø50mm
• Minimum thickness of magnetic substrate : 0.5mm
• Minimum thickness of non-magnetic substrate : 0.5mm
• Minimum curvature radius of convex magnetic substrate : 2mm
• Minimum curvature radius of concave magnetic substrate : 11mm
• Operating environment : 0~45°C ? 10~95%RH
• Display : Digital LCD display with Back-light
• Calibration : Zero / One-point / Two-point
• Main Functions : Built-in calibration function, Back-light, Single, Successive, Difference measuring modes, Battery sign and Low power warning, metric / imperial switchable, Auto / Manual power off
• Power Supply : Two AAA 1.5V alkaline battery (About more than 2000 measurements)
• Included Accessories : Main unit, Zero standard x 2 (Non-Magnetic x 1 , Magnetic x 1), Calibration foils x 6 standards, Plastic carrying case, Instruction manual
