KD5018 \ efector 150 \ Capacitive sensor \ KDE3060-FPKG/NI \ DE

Details of KD5018 \ efector 150 \ Capacitive sensor (Metal and non-metal detector) \KDE3060-FPKG/NI \ DE

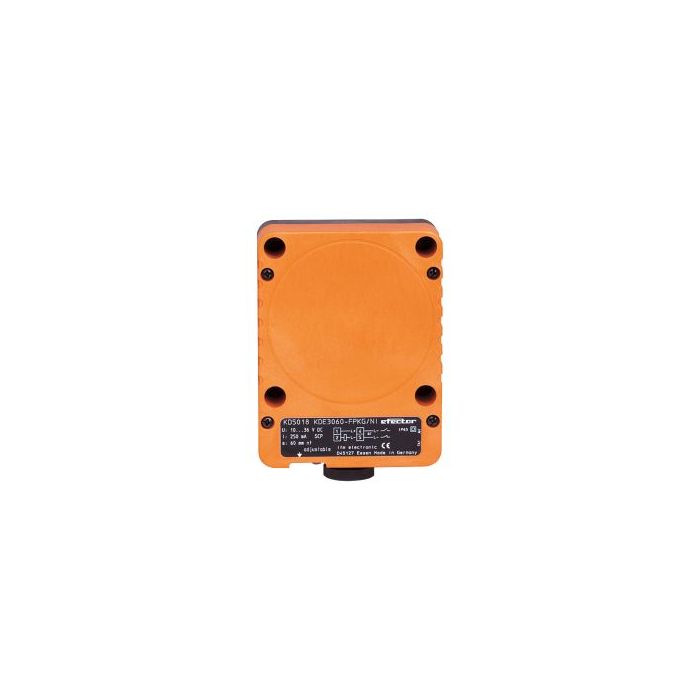

KD5018 \ efector 150 \ Capacitive sensor (Metal and non-metal detector) \KDE3060-FPKG/NI \ DE A capacitive sensor from ifm that can be used for detecting metal and non-metal objects. Easy to mount with a compact size, it is also weather-resistant for enhancing efficiency in industrial production processes.

Features of KD5018 \ efector 150 \ Capacitive sensor (Metal and non-metal detector) \KDE3060-FPKG/NI \ DE

• Electrical design PNP
• Output function normally open / normally closed; (selectable)
• Sensing range[mm] 60
• Housing rectangular
• Operating voltage[V] 10...36 DC
• Current consumption[mA] 15; (24 V)
• Protection class II
• Reverse polarity protection yes
• Sensing range[mm] 60
• Real sensing range Sr[mm] 60 ± 10 %
• Operating distance[mm] 0...48.6
• Correction factor glass: 0.4 / water: 1 / ceramics: 0.2 / PVC: 0.2
• Hysteresis[% of Sr] 1...15
• Switch point drift[% of Sr] -15...15
• Ambient temperature[°C] -25...80
• Protection IP65
• Increased immunity yes
• Weight[g] 297.5
• Housing rectangular
• Mounting non-flush mountable
• Dimensions[mm] 105 x 80 x 40
• Materials PPE modified
