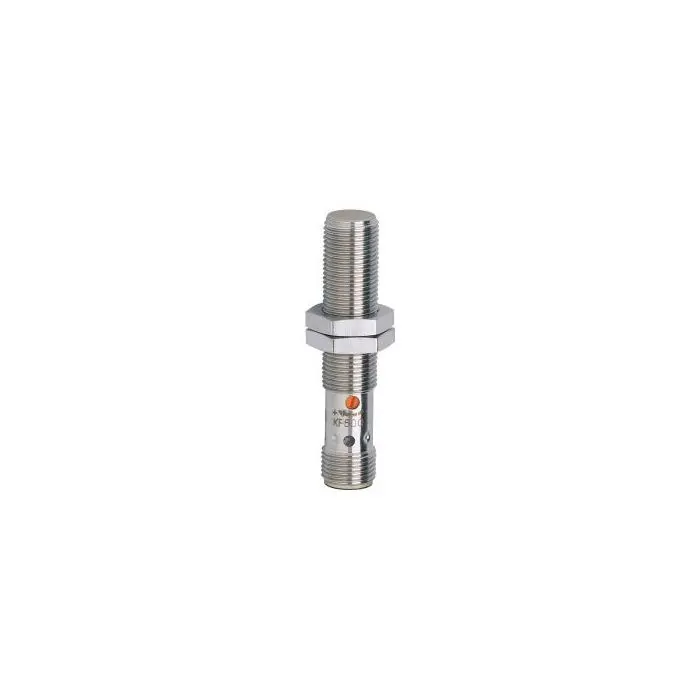

KF5001 \ efector 150 \ Capacitive sensor \ KFA3040BBPKG/NI/US \ DE

Details of KF5001 \ efector 150 \ Capacitive sensor (Metal and non-metal detection sensor) \KFA3040BBPKG/NI/US \ DE

KF5001 \ efector 150 \ Capacitive sensor (Metal and non-metal detection sensor) \KFA3040BBPKG/NI/US \ DE A capacitive sensor from ifm designed for detecting metal and non-metal objects in industrial manufacturing processes. The sensor is compact, durable, and can operate effectively even under harsh weather conditions.

Features of KF5001 \ efector 150 \ Capacitive sensor (Metal and non-metal detection sensor) \KFA3040BBPKG/NI/US \ DE

• Electrical design PNP
• Output function normally open
• Sensing range[mm] 1...6
• Housing threaded type
• Media dry bulk material; liquids
• Operating voltage[V] 10...36 DC; ("supply class 2" to cULus)
• Current consumption[mA] < 12
• Protection class III
• Reverse polarity protection yes
• Sensing range[mm] 1...6
• Sensing range adjustable yes
• Factory setting sensing range[mm] 4
• Real sensing range Sr[mm] 4 ± 10 %
• Correction factor glass: 0.6 / water: 1 / ceramics: 0.5 / PVC: 0.4
• Hysteresis[% of Sr] 1...15
• Switch point drift[% of Sr] -20...20
• Ambient temperature[°C] -25...70
• Protection IP 65
• Increased immunity yes
• Weight[g] 39.3
• Housing threaded type
• Mounting flush mountable
• Dimensions[mm] M12 x 1 / L = 60
• Thread designation M12 x 1
• Materials stainless steel (316L/1.4404); PEEK
