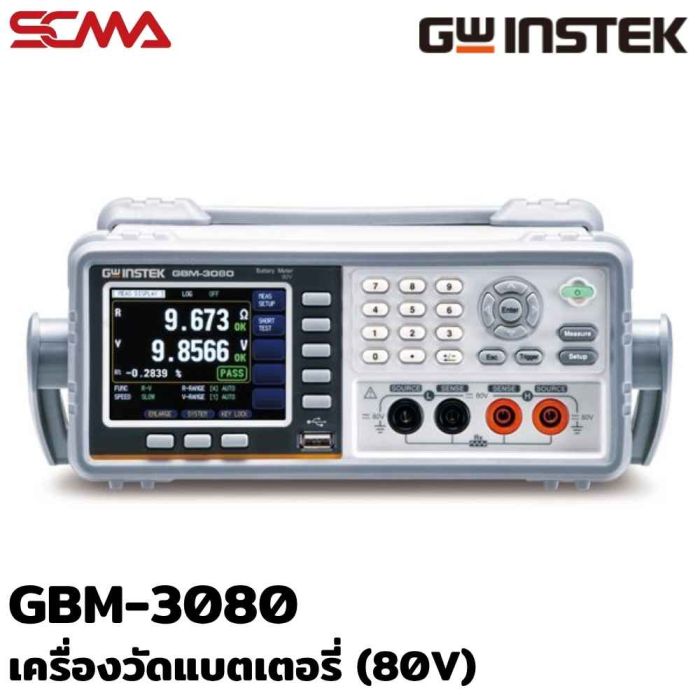

GBM-3080 GW Instek Battery Meter (80V) (including RS-232C / USB device / host and HANDLER)

Details of GW Instek Battery Meter GBM-3080 (80V) Battery Meter (including RS-232C / USB device / host and HANDLER)

The GW Instek Battery Meter GBM-3080 (80V) Battery Meter (including RS-232C / USB device / host and HANDLER) comes with a 3.5-inch TFT Color display (320x240), providing clear visibility, and can measure DC Voltage and AC resistance.

Supports various measurement ranges including:

• Voltage range of 80V
• Resistance range of 0 milliohms - 3.2 kiloohms at a test frequency of 1KHz
• Voltage measurement accuracy of 0.01%
• Resistance measurement accuracy of 0.5%
• Resolution for resistance measurement of 0.1 microohm
• Voltage range of 10 microvolts

Furthermore, the GW Instek Battery Meter GBM-3080 (80V) Battery Meter (including RS-232C / USB device / host and HANDLER) also features a GO/NOGO function for comparative voltage and resistance measurements, along with a pre-use test lead check system.

Interfaces of the GW Instek Battery Meter GBM-3080 (80V) Battery Meter (including RS-232C / USB device / host and HANDLER)

• USB host/device
• RS-232C
• Handler

Dimensions and Weight of GW Instek Milliohm Meter (Milliohm Meter) Model GOM-804 DC Milli-Ohm Meter

• Dimensions: 264 x 107 x 309 mm
• Weight: 2.8 kg
