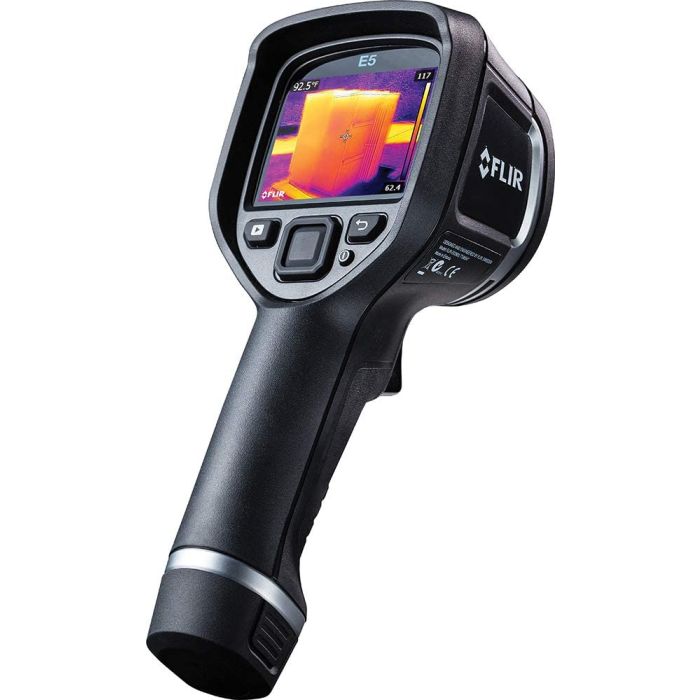

FLIR Imaging IR Thermometer Model E5

Details of FLIR Imaging IR Thermometer Model E5

FLIR Imaging IR Thermometer Model E5 with a temperature range of -20°C - 250°C (-4°F - 482°F) offers image resolution of 120 × 90, variable emissivity parameters and reflected temperature values for measurement accuracy, which can be viewed on the 3-inch screen that allows easy reading of measurements. The battery supports up to 4 hours of operation with a complete carrying case and accessories making it convenient to use anywhere.

Technical Data FLIR Imaging IR Thermometer Model E5

• IR Resolution 120 × 90
• MSX Resolution 320 × 240
• Thermal Sensitivity <0.10°C
• Field of View 45° × 34°
• Focus Focus Free
• Detector Uncooled Microbolometer
• Screen 3.0 in. 320 × 240 color LCD
• Frame Rate 9Hz
• Image Modes IR image, visual image, MSX, thumbnail gallery
• Multi Spectral Dynamic Imaging (MSX) IR image with enhanced detail presentation
• Temperature Range –4°F to 482°F (–20° to 250°C)
• Accuracy ±2% or 2°C
• Measurement Modes 2 modes: 1 Spot (center); 1 Area Box (Min/Max)
• Emissivity Correction Variable from 0.1 to 1.0
• Color Palettes Iron, Rainbow, and Gray
• Set-up Commands Local adaptation of units, language, date and time formats
• Storage Capacity Internal memory stores at least 500 sets of images
• Storage Mode Simultaneous storage of images in IR, visual and MSX
• File Formats Standard JPEG, 14-bit measurement data included
• Battery Type / Op Time ~4 hours
• Dimensions / Weight 1.27 lbs (0.575 kg)
• Drop 2 meter / 6.6 ft
