DTA100 \ efector 190 \ RFID \ DTSLF AARWASUS01 \ DE

Details of DTA100 \ efector 190 \ RFID (RFID Head for Reading and Writing) \DTSLF AARWASUS01 \ DE

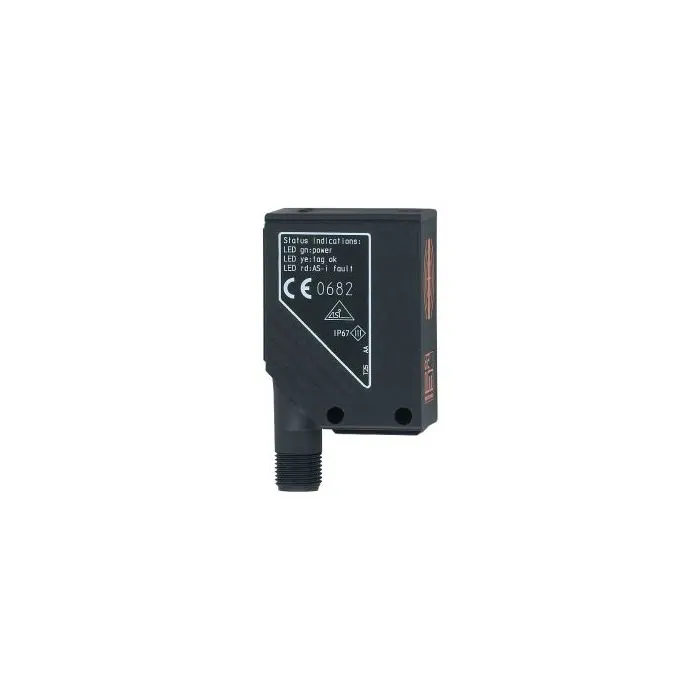

DTA100 \ efector 190 \ RFID (RFID Head for Reading and Writing) \DTSLF AARWASUS01 \ DE from ifm, an RFID head for reading and writing used in workpiece inspection systems within manufacturing processes.

Features of DTA100 \ efector 190 \ RFID (RFID Head for Reading and Writing) \DTSLF AARWASUS01 \ DE

• Application detection of objects on transport equipment
• Radio approval for USA; Canada; EU/RED; Australia; China
• Note on radio approval The list of countries applying the European Radio Equipment Directive 2014/53/EU (RED) can be found under “Downloads”
• Operating voltage[V] 26.5...31.6 DC; ("supply class 2" to cULus)
• Current consumption[mA] < 50
• Protection class III
• Operating frequency[MHz] 0,125
• Electrical design AS-i
• Ambient temperature[°C] -20...50
• Storage temperature[°C] -25...80
• Protection IP67
• Weight[g] 104.3
• Housing rectangular
• Dimensions[mm] 55 x 24 x 41
• Materials PA
