Details of DTA300 \ efector 190 \ RFID (RFID read/write head) \DTSLF DCRWASUS01 \ DE

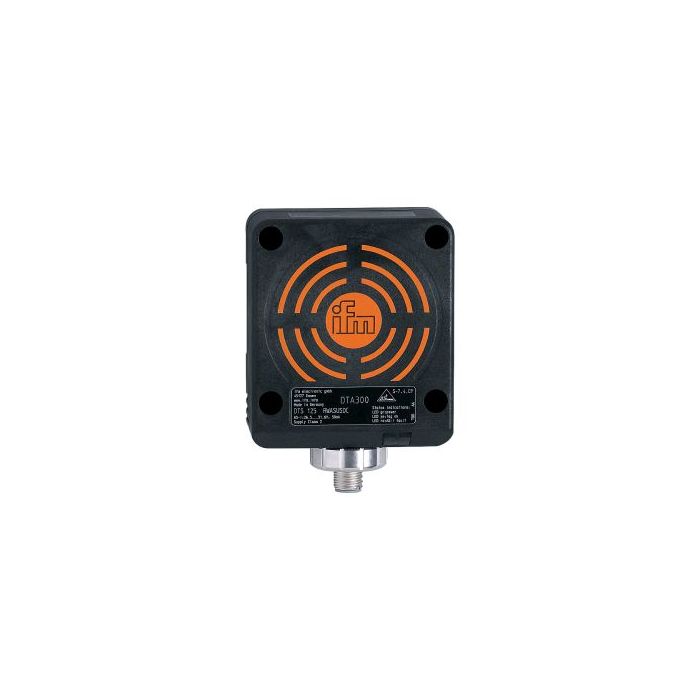

DTA300 \ efector 190 \ RFID (RFID read/write head) \DTSLF DCRWASUS01 \ DE An RFID read/write head that can be used with AS-Interface from ifm to enhance production processes, along with a compact size for easy installation and compatibility in any location. It also features effective dust and water protection standards, making it durable in harsh weather conditions.

Technical Data DTA300 \ efector 190 \ RFID (RFID read/write head) \DTSLF DCRWASUS01 \ DE

• Application Detection of objects on transport equipment
• Radio approval for USA; Canada; EU/RED; Australia; Singapore; China
• Note on radio approval The list of countries applying the European Radio Equipment Directive 2014/53/EU (RED) can be found under “Downloads”
• Operating voltage[V] 26.5...31.6 DC
• Current consumption[mA] < 65
• Protection class III
• Operating frequency[MHz] 0,125
• Electrical design AS-i
• Travel speed[m/s] < 0.5
• Distance read/read head front 400
• Distance read/read head side 280
• Communication interface AS-i
• Ambient temperature[°C] -20...60
• Storage temperature[°C] -25...80
• Protection IP67
• Weight[g] 414
• Housing rectangular
• Dimensions[mm] 92 x 80 x 40
• Material housing: PPE; metal parts: diecast zinc / brass nickel-plated
