DTA200 \ efector 190 \ RFID \ DTSLF MCRWASUS01 \ DE

Details of DTA200 \ efector 190 \ RFID (RFID Read and Write Head) \DTSLF MCRWASUS01 \ DE

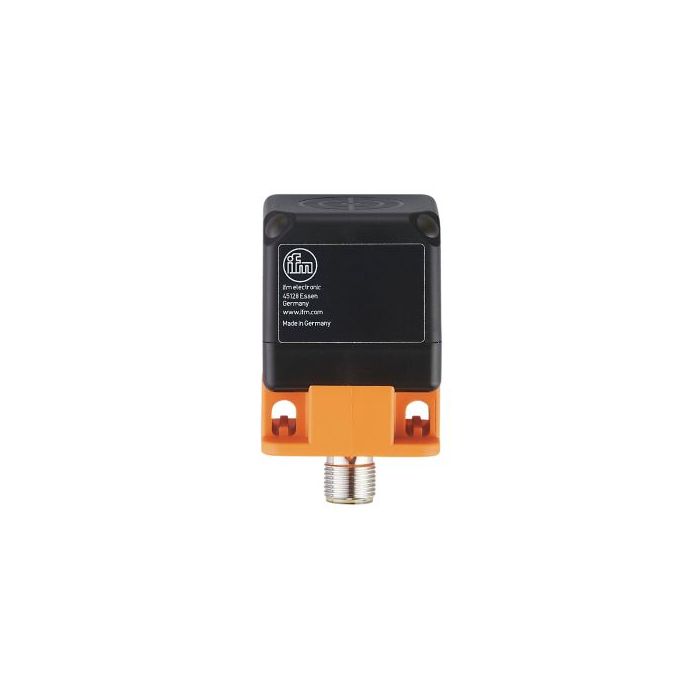

DTA200 \ efector 190 \ RFID (RFID Read and Write Head) \DTSLF MCRWASUS01 \ DE An RFID read and write head that can be used with AS-Interface from ifm to enhance production processes, featuring a compact size for easy installation and compatibility in any location. It also meets effective dust and water protection standards, making it durable in harsh weather conditions.

Technical Data DTA200 \ efector 190 \ RFID (RFID Read and Write Head) \DTSLF MCRWASUS01 \ DE

• Application Detection of objects on conveying systems; suitable for travel speeds up to 0.5 m/s
• Electrical design AS-i
• Operating voltage [V] 26.5...31.6 DC (AS-i) ¹)
• Current consumption [mA] ≤ 75
• Protection class III
• operating frequency [kHz] 125
• Travel speed * [m/s] read: ≤ 0.5 (distance to the ID tag 30 mm), write: only static
• Distance to the ID tag * [mm] read: ≤ 55 (static)
• Distance between read/read heads ** [mm] ≥ 150 side / front
• Distance between read/write heads** [mm] ≥ 300 side / front
• value range 16 bits (15-bit ID value, 1-bit message)
• Ambient temperature [°C] -20...60
• Storage temperature [°C] -25...80
• Protection IP67
