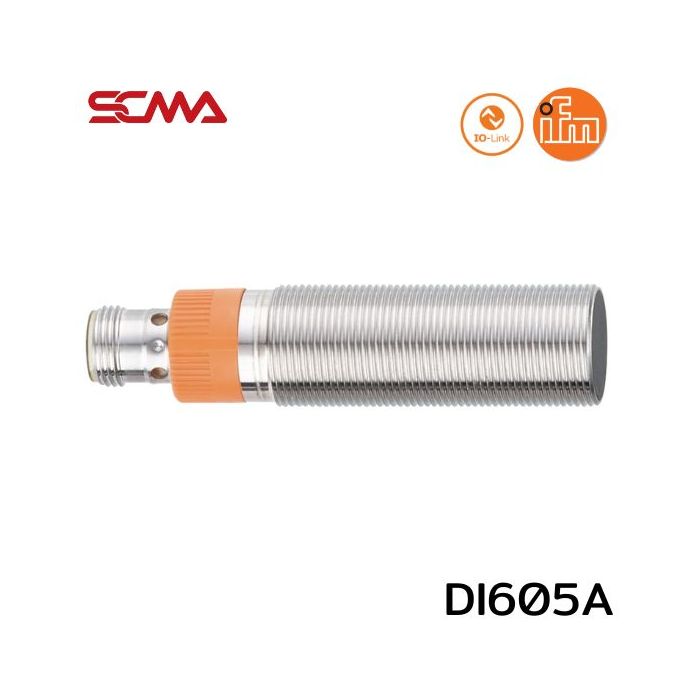

DI605A \ ecomat 200 \ Evaluation systems and power supplies \ DGA4005-WRKG/IO/US/3D \ DE \ Compact IO-Link rotary speed sensor designed for installation in limited spaces.

• Able to read multiple values through the IO-Link switch, also offers pulse output options
• Reliable non-contact rotational speed monitoring
• 2-in-1 : Integrated speed and evaluation unit in a compact housing
• Durable metal housing that eliminates the need for additional protective housings against impact
• Easy to set up via teach button IO-Link • Reduces installation complexity
• IO-Link for signal transmission and diagnostic data
• Bespoke flush-mount and non-flush-mount versions available
• Versions certified for explosion protection (ATEX)

Tech Data DI605A \ ecomat 200 \ Evaluation systems and power supplies \ DGA4005-WRKG/IO/US/3D \ DE \

• Electrical design : PNP/NPN
• Output function : normally open / normally closed
• Sensing range[mm] : 5
• Communication interface : IO-Link
• Housing : threaded type
• Dimensions[mm] : M18 x 1 / L = 76
• Operating voltage[V] : 10...30 DC
• Output signal : switching signal
• Output signal pulse : signal; switching signal
• Switching frequency DC[Hz] : < 500
• Measuring range[Imp/min] : 1...32000
• Ambient temperature[°C] : -20...60
• Protection : IP 67
• Mounting : flush mountable
• Connection : Connector M12
