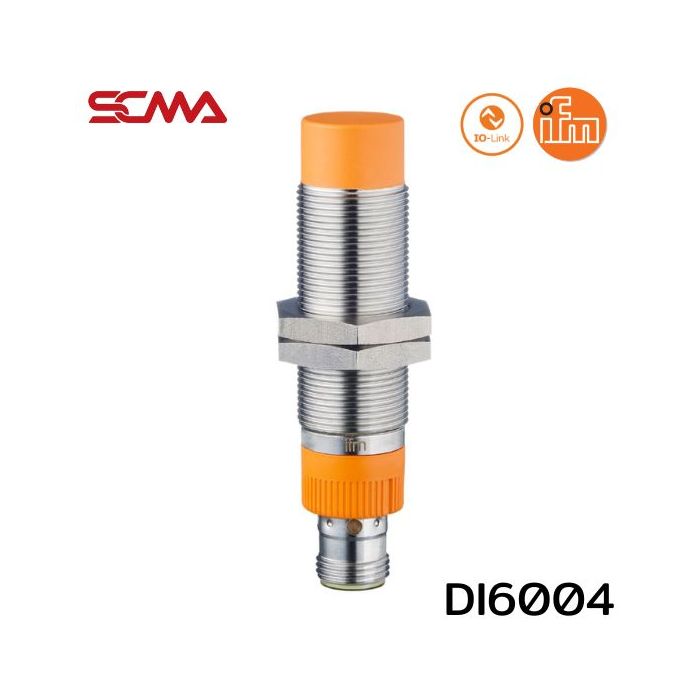

DI6004 \ ecomat 200 \ Evaluation systems and power supplies \ DGA4012-WRKG/IO/US \ DE \ Compact IO-Link speed sensor designed for installation in limited spaces.

• Able to read multiple values through the IO-Link switch, also offers pulse output options
• Reliable non-contact speed monitoring
• 2-in-1: Speed and evaluation in a compact housing
• Durable metal housing that does not require an additional protective cover, providing extra impact protection
• Easy to set up via IO-Link teach button
• Simplifies installation complexity
• IO-Link for signal transmission and diagnostic data
• Flush mountable and non-flush mount versions available
• Versions certified for explosion-proof (ATEX)

Tech Data DI6004 \ ecomat 200 \ Evaluation systems and power supplies \ DGA4012-WRKG/IO/US \ DE \

• Electrical design : PNP/NPN
• Output function : normally open / normally closed
• Sensing range[mm] : 12
• Communication interface : IO-Link
• Housing : threaded type
• Dimensions[mm] : M18 x 1 / L = 75
• Operating voltage[V] : 10...30 DC
• Output signal : switching signal
• Output signal pulse : signal; switching signal
• Switching frequency DC[Hz] : < 500
• Measuring range[Imp/min] : 1...32000
• Ambient temperature[°C] : -25...85
• Protection : IP 65; IP 66; IP 67; IP 68; IP 69K
• Mounting : non-flush mountable
• Connection : Connector M12
