B100DY 1NO GREEN Push Button Momentary 22mm.

Details of B100DY 1NO GREEN EMAS Push Button Momentary 22mm.

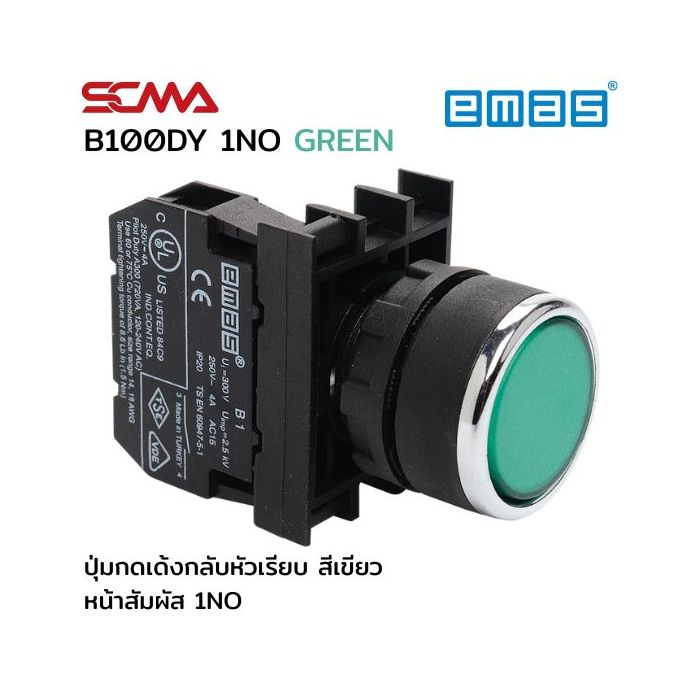

B100DY 1NO GREEN EMAS Push Button Momentary 22mm. A push button for electrical cabinets and control panels, model B Series from the Turkish brand EMAS. The mounting material is made of impact-resistant polycarbonate. It features a flat head snap-action switch in green color with a mounting hole diameter of 22mm.

Technical Data of B100DY 1NO GREEN EMAS Push Button Momentary 22mm.

• Mechanical Life :  500,000 operations min.
• Electrical Life : 100,000 operations min.
• Operating Temperature : min./max. °C -5/+40
• Protection Degree : IP50
• Operating Frequency : Without load 3,000 operations/hour , At full load 1,200 operations/hour
• Insulation Voltage (Ui) : 300 V
• Impact Resistance (Uimp) : 2.5 kV
• Short Circuit Breaking Capacity (Icn) : 1 kA
• Insulation Resistance : 10 MΩ min. (500 VDC)
• Utilization Category : AC15
• Dielectric Strength : 1,500 VAC (For 1 minute)
• Standard Contact Material : AgNi
• Cable Section : 1.5-2.5 mm²
• Standard : UL 508 TS EN 60947-5-1 VDE0660 IEC60393-1
