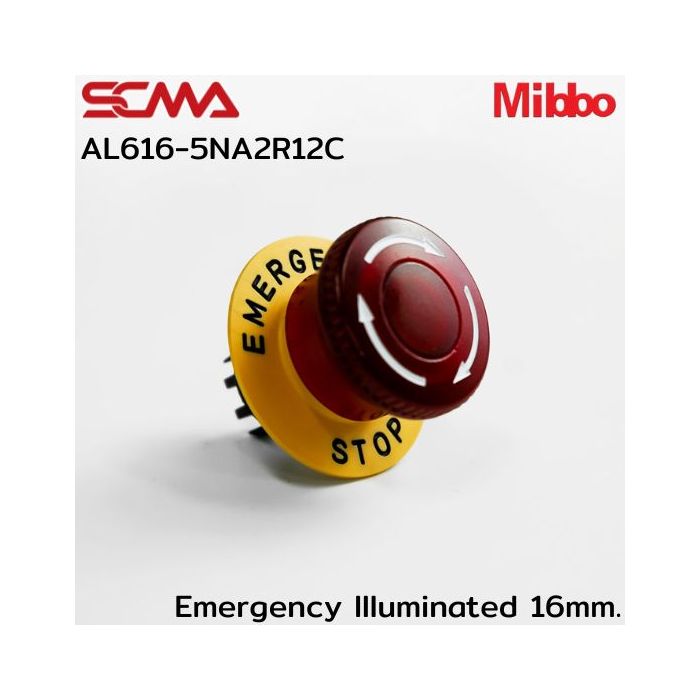

AL616-5NA2R12C Emergency Illuminated 16mm. Maintained With 24VDC Mibbo

Details AL616-5NA2R12C Emergency Illuminated 16mm. Maintained With Template 24VDC Mibbo

AL616-5NA2R12C Emergency Illuminated 16mm. or Emergency Stop Pushbutton Illuminated – Emergency stop button with status indicator, for control panels. The Emergency Illuminated 16mm. is an essential component in electrical and industrial machinery control systems used to immediately halt machine operation in emergencies, featuring a LED light (Illuminated) to clearly indicate system status or readiness. With a standard installation hole size of 16 millimeters (Ø16mm), it facilitates easy installation while saving space, making it suitable for small electrical control cabinets, compact machinery, and automation systems.

Technical Features AL616-5NA2R12C Emergency Illuminated 16mm. Maintained With Template 24VDC Mibbo

• Type: Emergency Pushbutton Switch (Illuminated)
• Mounting Hole: Ø16mm
• Shape: Round (Round Head)
• Head Type: Mushroom Head (Mushroom Head)
• Operation Type: Maintained (Push-to-Maintain / Pull Reset) or Twist Release
• Button Color: Red (Red)
• LED Color: Red / Green / Yellow (Depending on Model)
• Lamp Voltage: 12V, 24V, 110V, 220V (AC/DC)
• Contact Type: 1NO / 1NC or 2NC (Depending on Model)
• Body Material: Heat Resistant Plastic
• Protection Degree: IP40 – IP65
• Operating Temperature: -25°C to +55°C
• Standard: IEC / CE / RoHS
