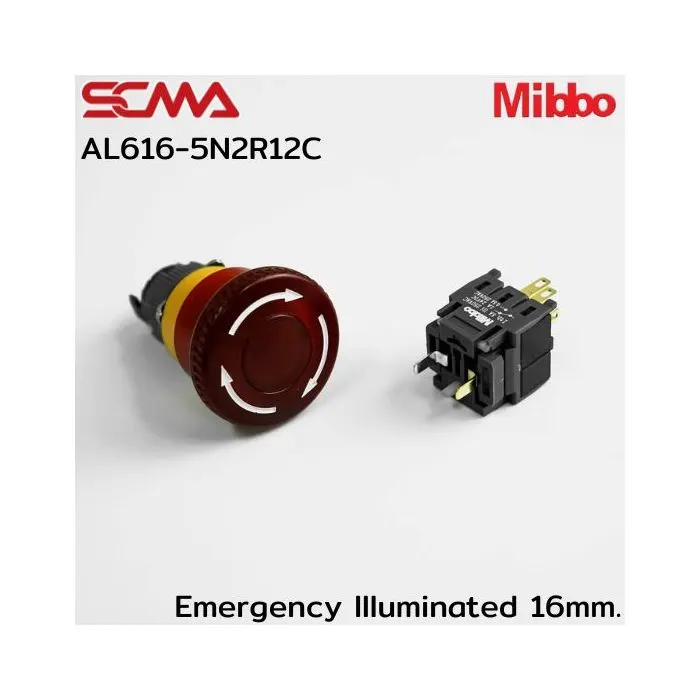

AL616-5N2R12C Emergency Illuminated 16mm. Maintained 24VDC

Details AL616-5N2R12C Emergency Illuminated 16mm. Maintained 24VDC Mibbo

AL616-5N2R12C Emergency Illuminated 16mm. Maintained 24VDC Mibbo – Emergency Stop Pushbutton with Status Indicator, for Control Panels or Emergency Stop Pushbuttons with Illumination (Emergency Stop Pushbutton Illuminated) is a critical component in electrical control and industrial machinery systems. It is used to immediately stop machine operation in emergencies, accompanied by an LED light (Illuminated) to clearly indicate the system status or readiness. With a standard installation hole size of 16mm (Ø16mm), it facilitates easy installation, space-saving, suitable for small electrical control cabinets, compact machinery, and automation systems.

Technical Features AL616-5N2R12C Emergency Illuminated 16mm. Maintained 24VDC Mibbo

• Type: Emergency Pushbutton Switch (Illuminated)
• Mounting Hole: Ø16mm
• Shape: Round (Round Head)
• Head Type: Mushroom Head (Mushroom Head)
• Operation Type: Maintained (Push-to-Maintain / Pull Reset) or Twist Release
• Button Color: Red (Red)
• LED Color: Red / Green / Yellow (Depending on Model)
• Lamp Voltage: 12V, 24V, 110V, 220V (AC/DC)
• Contact Type: 1NO / 1NC or 2NC (Depending on Model)
• Body Material: Heat Resistant Plastic
• Protection Degree: IP40 – IP65
• Operating Temperature: -25°C to +55°C
• Standard: IEC / CE / RoHS
