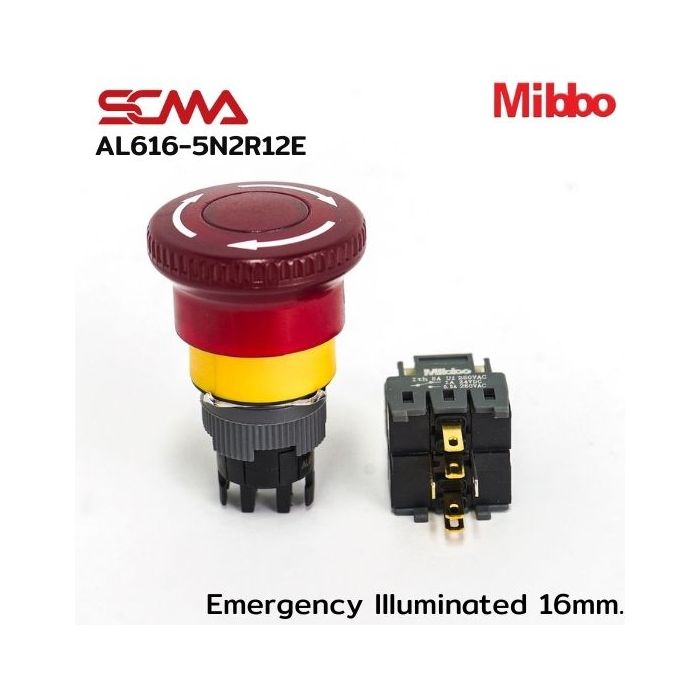

AL616-5N2R12E Emergency Illuminated 16mm. Maintained 220VAC

Details AL616-5N2R12E Emergency Illuminated 16mm. Maintained 220VAC Mibbo

AL616-5N2R12E Emergency Illuminated 16mm. or Maintained Emergency Stop Pushbutton Illuminated – Emergency stop button with status indicator for control panels. This is an important device in electrical and industrial machinery control systems, used to immediately halt machine operation in emergencies, accompanied by a LED light (Illuminated) to clearly indicate the system's operational status or readiness. With a standard installation hole size of 16mm (Ø16mm), it facilitates easy installation while saving space, suitable for small electrical control cabinets, compact machinery, and automation systems.

Technical Features AL616-5N2R12E Emergency Illuminated 16mm. Maintained 220VAC Mibbo

• Type: Emergency Pushbutton Switch (Illuminated)
• Mounting Hole: Ø16mm
• Shape: Round (Round Head)
• Head Type: Mushroom Head (Mushroom Button)
• Operation Type: Maintained (Push-to-Hold / Pull Reset) or Twist Release
• Button Color: Red
• LED Color: Red / Green / Yellow (Depending on Model)
• Lamp Voltage: 12V, 24V, 110V, 220V (AC/DC)
• Contact Type: 1NO / 1NC or 2NC (Depending on Model)
• Body Material: Heat Resistant Plastic
• Protection Degree: IP40 – IP65
• Operating Temperature: -25°C to +55°C
• Standard: IEC / CE / RoHS
