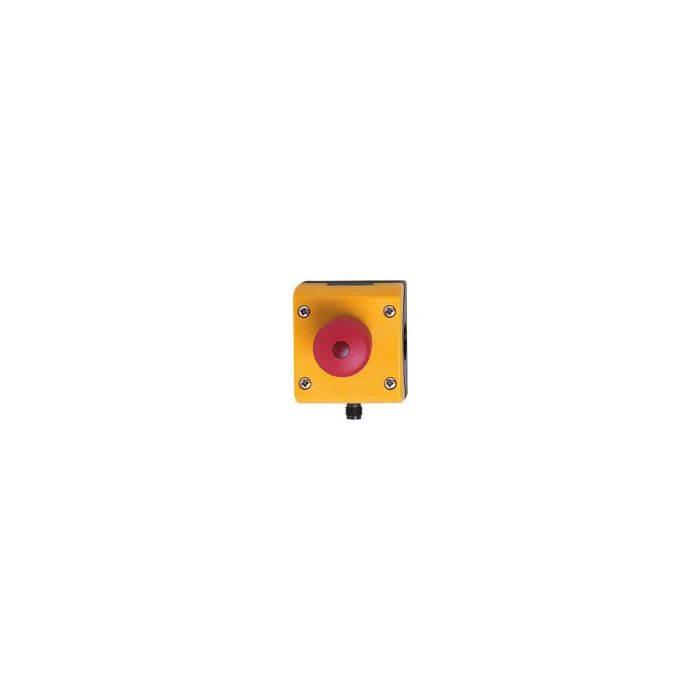

AC010S \ ecomat 300 \ AS-i \ E-stop illuminated IP67 \ DE

Details of AC010S \ ecomat 300 \ AS-i (Safety device for AS-interface system) \E-stop illuminated IP67 \ DE

AC010S \ ecomat 300 \ AS-i (Safety device for AS-interface system) \E-stop illuminated IP67 \ DE from ifm for preventing unexpected accidents in production processes to ensure industrial safety. Small size, can be used very well with the AS-interface system.

Features of AC010S \ ecomat 300 \ AS-i (Safety device for AS-interface system) \E-stop illuminated IP67 \ DE

• Application fool-proof E-STOP to EN ISO 13850
• Operating voltage[V] 26.5...31.6 DC
• Max. current consumption from AS-i[mA] 50
• Integrated watchdog yes
• Input circuit of digital inputs PNP
• Sensor supply of the inputs AS-i
• Power supply[V] 20
• Input current Low[mA] < 4
• Digital inputs protected against short circuits yes
• Outputs Electrical design AS-i
• Max. current load per output[mA] 10
• Short-circuit proof no
• Actuator supply outputs AS-i
• Ambient temperature[°C] -25...60
• Protection IP67
• Weight[g] 330.6
• Housing rectangular
• Dimensions[mm] 93.5 x 72 x 105
• Materials PC-GF20
