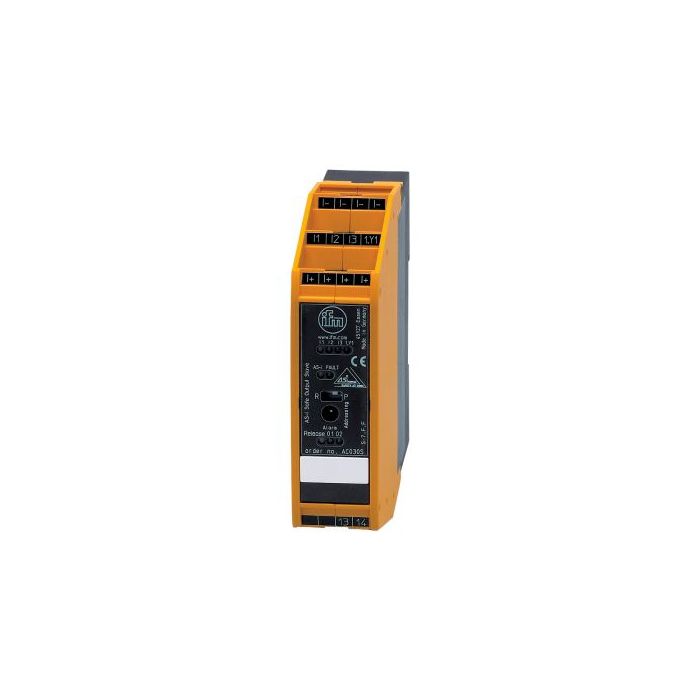

AC030S \ ecomat 300 \ AS-i \SmartLine Module 2SO IP20 \ DE

Details of AC030S \ ecomat 300 \ AS-i (Safety Device for AS-interface System) \SmartLine Module 2SO IP20 \ DE

AC030S \ ecomat 300 \ AS-i (Safety Device for AS-interface System) \SmartLine Module 2SO IP20 \ DE A device from ifm that enhances safety in the AS-interface system, making production processes safer and preventing unexpected accidents.

Features of AC030S \ ecomat 300 \ AS-i (Safety Device for AS-interface System) \SmartLine Module 2SO IP20 \ DE

• Electrical design 4 non-safe inputs, 2 non-safe LED outputs, 1 safe relay output
• Operating voltage [V] 26.5...31.6 DC; "supply class 2" to cULus.
• Current consumption [mA] ≤ 200
• Max. current load per module [mA] 3000
• Circuit DC PNP
• Voltage range [V] 18...30 DC
• Short-circuit detection ja
• Relay output 1
• Cross-bridging detection no
• External voltage supply yes
• Ambient temperature [°C] -25...55
• Protection IP20
• Housing materials PA
• Weight [kg] 0.242
