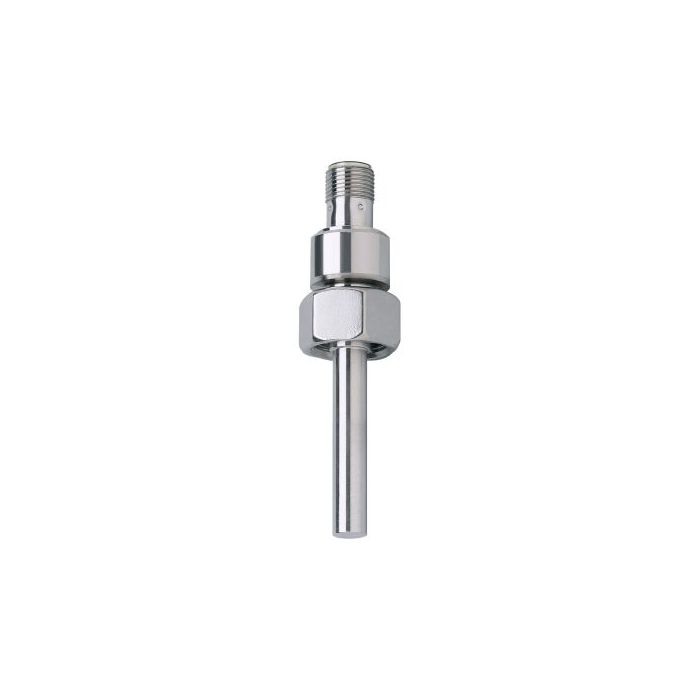

TM9950 \ efector 600 \ Temp sensor \ TM-045-BEM18 /US \ US

Details of TM9950 \ efector 600 \ Temp sensor (Temperature Sensor) \TM-045-BEM18               /US \ US

TM9950 \ efector 600 \ Temp sensor (Temperature Sensor) \TM-045-BEM18               /US \ US Pt100 temperature sensor for the food and beverage industry

• Measures temperatures from -50~150°C
• Increase accuracy with pt100 Class A
• Housing made of high-quality stainless steel 316L
• Tough pressure resistance, versatile use
• Sensor probe diameter Ø6 mm and Ø8.2 mm, length 20~150 mm
• Available with G1/2 thread or Tri-clamp 1.5", 2"
• Operating voltage: 18...32 VDC
• Dimensions M24.5x34 mm., M50x24 mm.
• Dust and water protection standard IP68/69K

The TM9950 \ efector 600 \ Temp sensor (Temperature Sensor) \TM-045-BEM18               /US \ US is used to measure the temperature of various mediums in the food and beverage manufacturing industry, such as measuring hot water temperatures for cleaning processes or frying oil temperatures for potato chip production.

Technical Data TM9950 \ efector 600 \ Temp sensor (Temperature Sensor) \TM-045-BEM18               /US \ US

• Measuring range : -40...125 °C    -40...257 °F
• Process connection : threaded connection M18 x 1,5 internal thread
• Installation length EL[mm] : 60
• Special feature : Gold-plated contacts
• Measuring element : 1 x Pt 100; (to DIN EN 60751, class B)
• Media : liquids and gases
• Pressure rating : 300 bar    30 MPa
• Minimum installation depth[mm] : 15
• Protection class : III
• Probe length L[mm] : 44
• Measuring range : -40...125 °C    -40...257 °F
