TD2507 \ efector 600 \ Temp sensor \ TD-030CFER12-A-ZVG/US \ US

Details of TD2507 \ efector 600 \ Temp sensor (Temperature Sensor) \TD-030CFER12-A-ZVG/US \ US

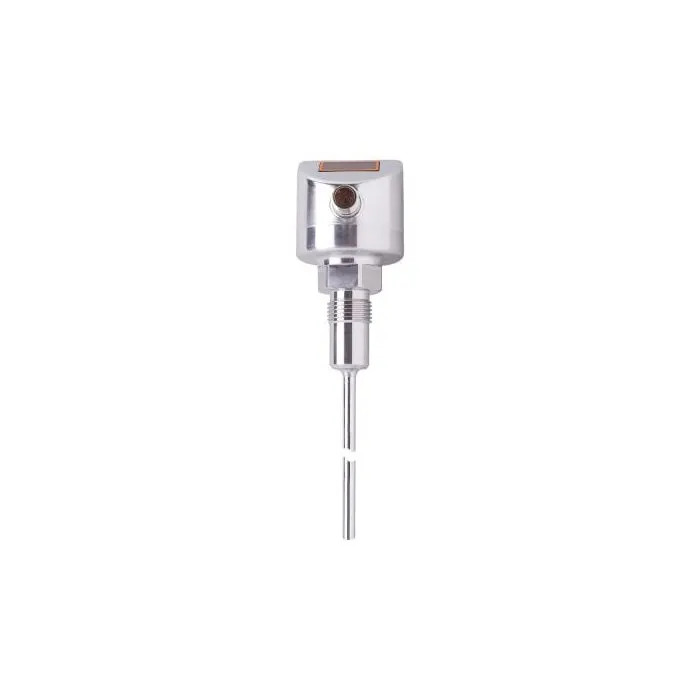

TD2507 \ efector 600 \ Temp sensor (Temperature Sensor) \TD-030CFER12-A-ZVG/US \ US A temperature transmitter with fast temperature response, featuring a display.

• Easily set up Analogue Output 4...20 mA via IO-Link system
• Measurement range from 50~150°C
• Rapid response time up to T05 / T09 = 1/3s
• Clear four-digit LED display
• Sensor rod length options ranging from 30~150 mm
• Threaded mounting size G½", or Tri Clamp 1.5", 2"
• Housing material: Stainless steel 316L
• Operating voltage: 18...32 VDC
• Dimensions: 50x63x48 mm., 50x63x69.4 mm.
• Dust and water protection standard IP69K

The TD2507 \ efector 600 \ Temp sensor (Temperature Sensor) \TD-030CFER12-A-ZVG/US \ US is suitable for measuring the temperature of various media in food and beverage manufacturing industries, such as measuring temperatures in industrial milk pipes or water temperatures in pipelines.

Technical Data TD2507 \ efector 600 \ Temp sensor (Temperature Sensor) \TD-030CFER12-A-ZVG/US \ US

• Number of inputs and outputs : Number of analogue outputs: 1
• Measuring range : -50...150 °C / -58...302 °F
• Communication interface : IO-Link
• Process connection : threaded connection G 1/2 external thread sealing cone
• Installation length EL[mm] : 30
• Measuring element : 1 x Pt 1000; (to DIN EN 60751, class A)
• Media : liquids and gases
• Pressure rating : 160 bar   16 MPa
• Vacuum resistance : -1000 mbar   -0.1 MPa
• MAWP (for applications according to CRN)[bar] : 160
• Operating voltage[V] : 18...32 DC; ("supply class 2" to cULus)
• Current consumption[mA] : < 50
• Protection class : III
• Reverse polarity protection : yes
• Power-on delay time[s] : 2
• Number of inputs and outputs : Number of analogue outputs: 1
