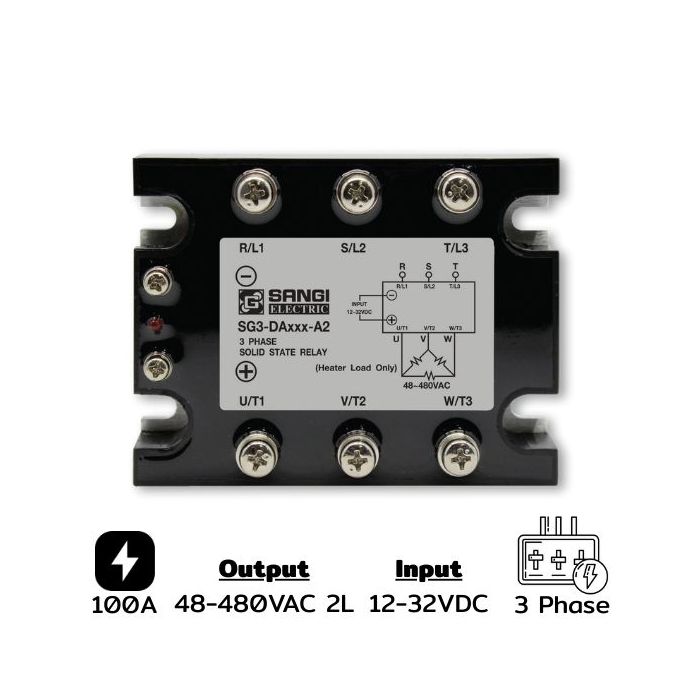

SG3-DA100-A2-2L Three phases Input 12-32VDC Output 48-480VAC 100A

Details of SG3-DA100-A2-2L Three phases Input 12-32VDC Output 48-480VAC Current 100A

SG3-DA100-A2-2L Three phases Input 12-32VDC Output 48-480VAC Current 100A Solid State Relay (SSR) three-phase SSR that uses DC input and AC output In this case, the Solid State Relay (SSR) operates with a DC input voltage (such as 3V, 5V, 12V or 24V DC) and an AC output voltage (such as 220V AC or 380V AC) for controlling AC-powered loads

Working Principle

• Input (DC Control Signal): The DC input triggers the SSR through a circuit that uses opto-isolator or LED to send signals to the control circuit of the SSR. When an appropriate DC signal reaches the Input, the SSR opens the opto-isolator circuit which separates the control circuit voltage from the load circuit (AC power). The Input may have DC voltages in the range of 3V, 5V, 12V or 24V depending on the SSR model.
• Output (AC Load Control): When the SSR receives a signal from the Input, it controls the AC-powered load circuits such as three-phase motors, heaters, or industrial electricity. In this operation, the SSR works in either Random Turn-on or Zero Crossing mode, depending on the SSR design. For DC input models, immediate circuit opening (Random Turn-on) may be observed.

Features and Details

• Input (Control) DC (3V, 5V, 12V, 24V)
• Output (Load) AC (220V, 380V, 480V)
• Circuit Opening Mode Random Turn-on or Zero Crossing (depending on design)
• Current Rating 10A, 20A, 30A, 40A depending on the model
• Circuit Isolation Uses opto-isolator to separate control circuit from load circuit
• No Moving Parts No moving parts make it durable and long-lasting

Applications

SSR with DC input and AC output is suitable for controlling AC loads using a DC control signal, which finds applications in various fields such as:

• Large electric motors (such as three-phase motors in factories)
• Industrial heaters like ovens, furnaces, or heating systems
• Temperature control systems in devices requiring precise heat control
• Electric system control in automatic devices using DC signals to turn AC loads on/off

Usage Examples:

• The SSR can be used to control the operation of three-phase AC motors by providing a DC signal from PLC or microcontrollers.
• System heating (Heater) control can use SSR to turn on/off heaters using a DC control signal from temperature sensors or an automatic control system

Advantages

• No wear and tear: Since there are no moving parts like in traditional relays.
• Precise control: Opening/closing is fast and highly accurate.
• Durable: Longer lifespan compared to magnetic relay types.

Caution

• A heat sink or cooling system must be used to prevent overheating and random turn-on, which may cause issues with certain loads (e.g., heavily loaded motors).
• Overcurrent must be avoided as SSRs may open the circuit upon receiving a DC signal even if the current does not match load requirements.

Tech Data SG3-DA100-A2-2L Three phases Input 12-32VDC Output 48-480VAC Current 100A
