SBG257 \ efector 300 \ Flow sensor \SBG54IF0FRKG \ DE

Details of SBG257 \ efector 300 \ Flow sensor (Flow Sensor) \SBG54IF0FRKG \ DE

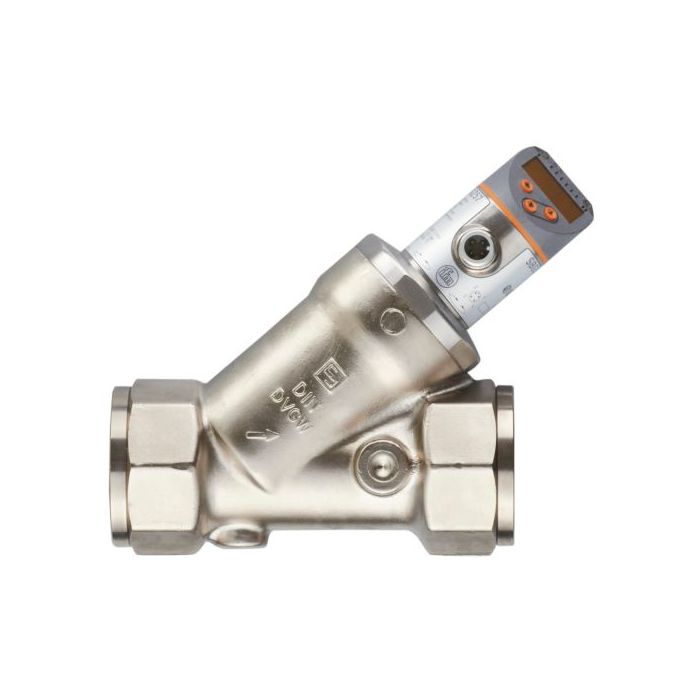

SBG257 \ efector 300 \ Flow sensor (Flow Sensor) \SBG54IF0FRKG \ DE A flow sensor from ifm that accurately detects fluid flow and temperature. It features reliable reverse flow protection with fast response time through switch output, analog output or frequency output, and works efficiently with IO-Link. The clear LED display provides clear status alerts with red and green color changes.

Technical Data SBG257 \ efector 300 \ Flow sensor (Flow Sensor) \SBG54IF0FRKG \ DE

• Number of inputs and outputs Number of digital outputs: 2; Number of analogue outputs: 1
• Measuring range 4...200 l/min 0.24...12 m³/h
• Process connection threaded connection G 1 1/4 internal thread
• Special feature Gold-plated contacts
• Application for industrial applications
• Media Liquids; water; glycol solutions; coolants
• Note on media oil 1 with viscosity: 10 mm²/s (40 °C), oil 2 with viscosity: 46 mm²/s (40 °C)
• Medium temperature[°C] -10...100
• Pressure rating 25 bar 2.5 MPa
• MAWP (for applications according to CRN)[bar] 25
• Weight[g] 1977.5
• Materials stainless steel (316L/1.4404); PBT+PC-GF30; PBT-GF20; PC; brass chemically nickel-plated
• Materials (wetted parts) stainless steel (316 / 1.4401); stainless steel (316L/1.4404); brass (2.0371); brass chemically nickel-plated; PPS; PP-GF30; spacer: POM; O-ring: FKM
• Process connection threaded connection G1 1/4 internal thread
