SBG232 \ efector 300 \ Flow sensor \SBG12IF0FRKG \ DE

Details of SBG232 \ efector 300 \ Flow sensor (Flow Sensor) \SBG12IF0FRKG \ DE

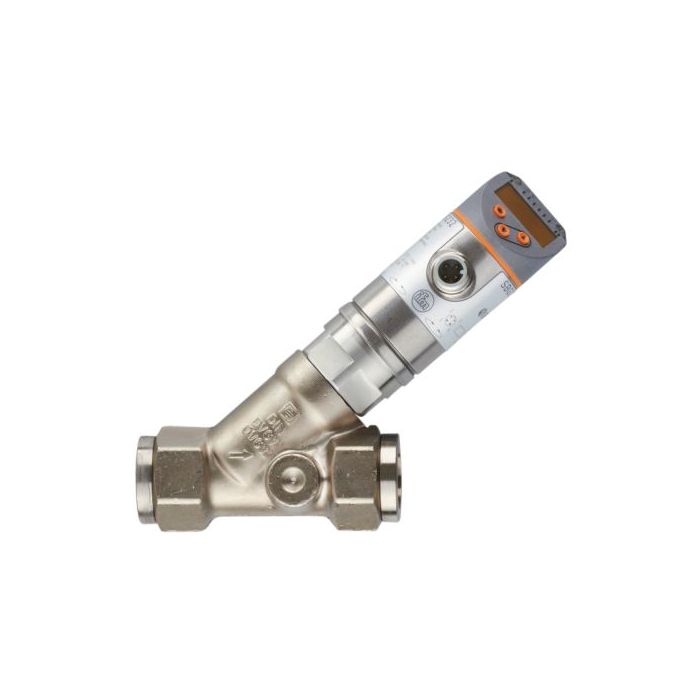

SBG232 \ efector 300 \ Flow sensor (Flow Sensor) \SBG12IF0FRKG \ DE A flow sensor from ifm that comes with accurate detection of liquid flow and temperature, featuring reliable reverse flow protection with fast response time through switch output, analogue output or frequency output. Compatibility with IO-Link enhances efficiency, providing clear status alerts via a clearly visible LED display with red and green color changes.

Technical Data SBG232 \ efector 300 \ Flow sensor (Flow Sensor) \SBG12IF0FRKG \ DE

• Number of inputs and outputs Number of digital outputs: 2; Number of analogue outputs: 1
• Measuring range 0.3...15 l/min 0.018...0.9 m³/h
• Process connection threaded connection G 1/2 internal thread
• Special feature Gold-plated contacts
• Application for industrial applications
• Media Liquids; water; glycol solutions; coolants
• Note on media oil 1 with viscosity: 10 mm²/s (40 °C), oil 2 with viscosity: 46 mm²/s (40 °C)
• Medium temperature[°C] -10...100
• Min. bursting pressure[bar] 160
• Pressure rating 40 bar 4 MPa
• MAWP (for applications according to CRN)[bar] 40
• Weight[g] 750
• Materials stainless steel (316L/1.4404); PBT+PC-GF30; PBT-GF20; PC; brass chemically nickel-plated
