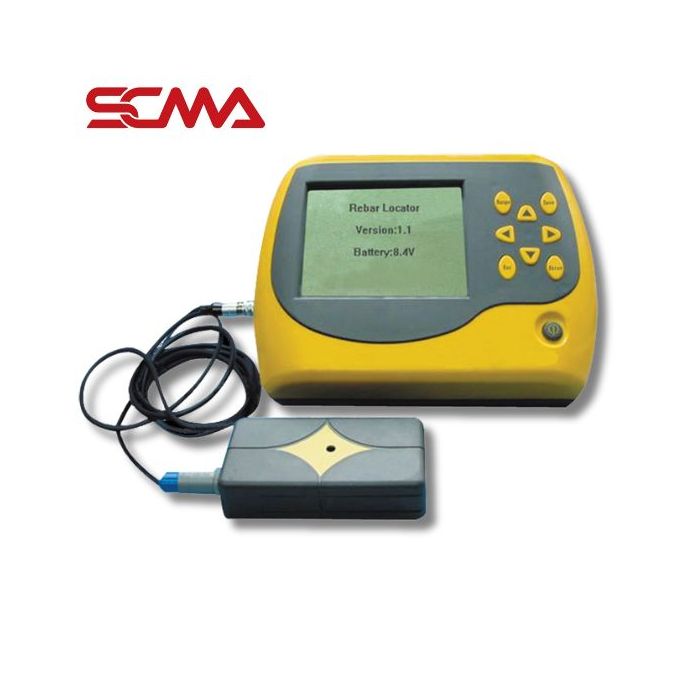

KRL-110 KEPLER Rebar Locator

KRL-110 KEPLER Rebar Locator Concrete Reinforcement Detector Features

The KRL-110 KEPLER Rebar Locator is suitable for accurately detecting steel reinforcement in concrete and can also efficiently detect other objects.

• Detection range covers two depth ranges: 6 mm~90 mm and 7 mm~200 mm
• Detection accuracy : Depth range 6 mm~90 mm ; ±1 mm (6 mm~59 mm), ±2 mm (60 mm~69 mm), ±4 mm (70 mm~90 mm)
• Detection accuracy : Depth range 7 mm~200 mm ; ±1 mm (7 mm~79 mm), ±2 mm (80 mm~119 mm), ±4 mm (120 mm~180 mm)
• Can detect steel bars with diameters from Ø6 mm~Ø50 mm
• Able to detect both conductive and non-conductive objects with magnetic fields or without, such as wires, cables, pipes, etc.
• Has 3 detection modes: grid pattern, profile scan, and large area scan • Has a direct display function for grid and profile images of rebars
• Battery powered using AA battery (LR6) x 6 pieces

KRL-110 KEPLER Rebar Locator Concrete Reinforcement Detector Technical Information
