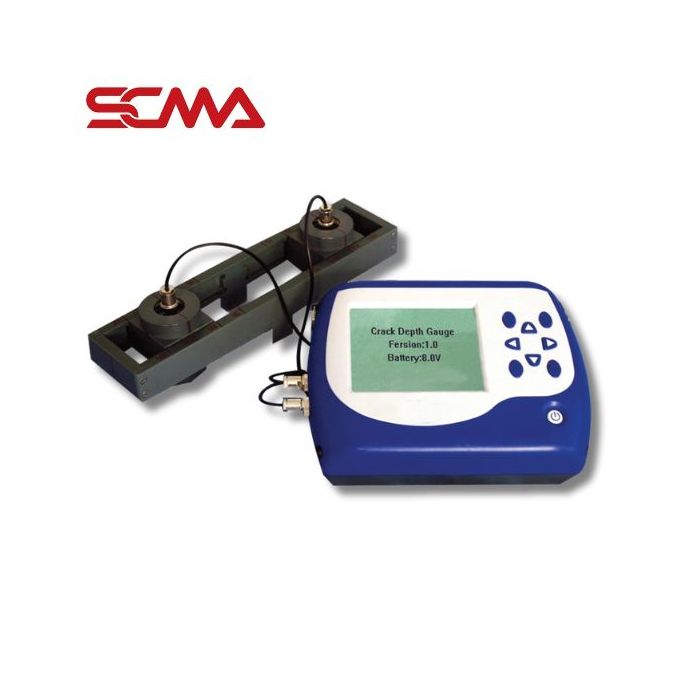

KCDG-200 KEPLER Crack Depth Gauge

Features of KCDG-200 KEPLER Concrete Crack Depth Gauge

KCDG-200 KEPLER Concrete Crack Depth Gauge comes with automatic detection function.

• An intelligent non-destructive concrete crack depth measuring instrument, equipped with an automatic detection feature
• Measurement range: 4 mm~500 mm
• Precision ≤5% (when crack depth is less than 50 mm) ; ≤10%  (when crack depth is more than 50 mm)
• Data memory capacity up to 25,000 data entries
• Large display screen for easy reading of information
• RS232 data communication port for connection with PC
• Data processing through software program
• Operating environment temperature range: -10°C~40°C and humidity <90% R.H
• Battery powered using 6 AA batteries (LR6)
• Suitable for use in various locations to check the depth of concrete cracks, such as building structures, high-rise buildings, load-bearing columns, beams, walls, etc.

Technical Data KCDG-200 KEPLER Concrete Crack Depth Gauge
