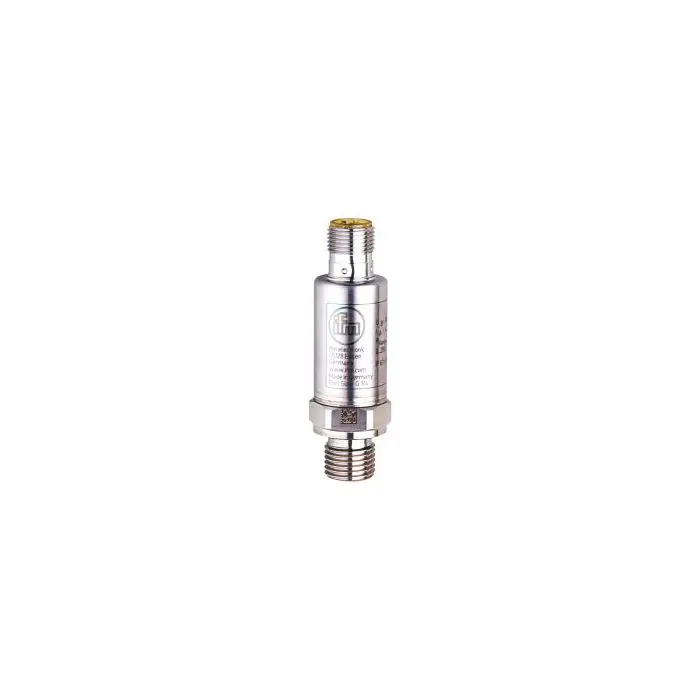

PT5412 \ efector 500 \ Pressure sensor \ PT-160-SEG14-A-ZVG/US/ \ DE

Details of PT5412 \ efector 500 \ Pressure sensor (pressure sensor) \PT-160-SEG14-A-ZVG/US/      /W \ DE

PT5412 \ efector 500 \ Pressure sensor (pressure sensor) \PT-160-SEG14-A-ZVG/US/      /W \ DE High-quality pressure transmitter for general use, compact size, cost-effective

• Can be used with various media such as hydraulic oil or water, etc.
• Output type: 4~20 mA and 0~10V
• Pressure measurement range: 0~400 bar
• Housing made of stainless steel 316L
• G 1/4" external thread
• Operating voltage: 20...32 VDC
• Size M18.9x66 mm.
• Dust and water protection standard IP67/69K

The PT5412 \ efector 500 \ Pressure sensor (pressure sensor) \PT-160-SEG14-A-ZVG/US/      /W \ DE is used to measure hydraulic oil pressure in machinery systems or to measure air compression for general machines.

Technical data PT5412 \ efector 500 \ Pressure sensor (pressure sensor) \PT-160-SEG14-A-ZVG/US/      /W \ DE

• Number of inputs and outputs : Number of analogue outputs: 1
• Measuring range : 0...160 bar    0...2320 psi    0...16 MPa
• Process connection : threaded connection G 1/4 external thread (DIN EN ISO 1179-2)
• Application : for industrial applications
• Media : liquids and gases
• Medium temperature[°C] : -40...90
• Min. bursting pressure : 1100 bar    15950 psi    110 MPa
• Pressure rating : 400 bar    5800 psi    40 MPa
• Note on pressure rating : static
• Vacuum resistance : -1000 mbar    -0.1 MPa
• Type of pressure : relative pressure
• Operating voltage[V] : 8.5...36 DC
• Min. insulation resistance[MΩ] : 100; (500 V DC)
• Protection class : III
• Reverse polarity protection : yes
• Power-on delay time[s] : < 0.1
