PS3427 efector 500 Pressure sensor SUBMERSIBLE 0,6BAR 15M PUR CABLE DE

Details of PS3427 \ efector 500 \ Pressure sensor (Pressure Sensor) \SUBMERSIBLE 0,6BAR 15M PUR CABLE \ DE

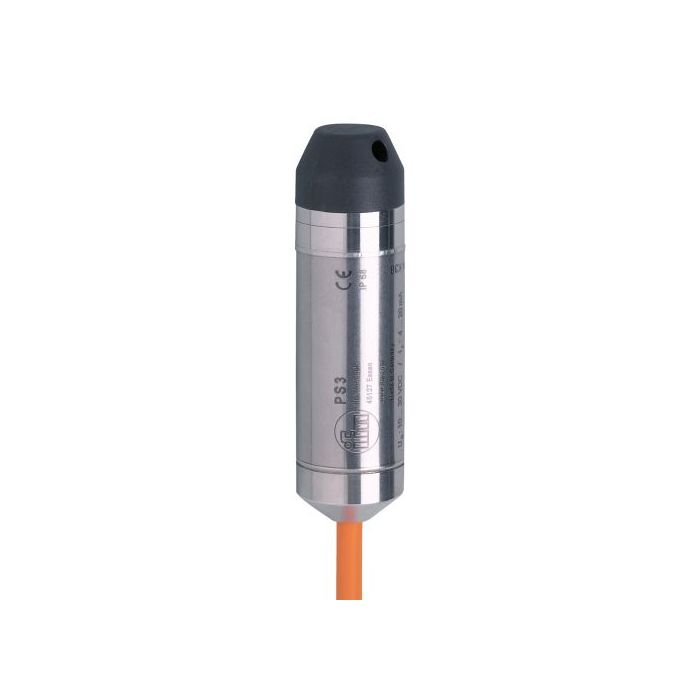

PS3427 \ efector 500 \ Pressure sensor (Pressure Sensor) \SUBMERSIBLE 0,6BAR 15M PUR CABLE \ DE A hydrostatic water level sensor from ifm designed for efficient industrial processes. It is made of stainless steel, ensuring durability and long-lasting performance in various weather conditions. Its compact size makes it easy to install.

Technical Data PS3427 \ efector 500 \ Pressure sensor (Pressure Sensor) \SUBMERSIBLE 0,6BAR 15M PUR CABLE \ DE

• Number of inputs and outputs Number of analogue outputs: 1
• Measuring range 0...0.6 bar 0...600 mbar 0...8.7 psi 0...240.9 inH2O 0...60 kPa
• Design with capillary tube for pressure compensation
• Application for industrial applications
• Media Liquids
• Medium temperature[°C] -10...50
• Min. bursting pressure 4.8 bar 70 psi 480 kPa
• Pressure rating 4 bar 58 psi 400 kPa
• Type of pressure relative pressure
• Operating voltage[V] 10...30 DC
• Protection class III
• Reverse polarity protection yes
• Measuring principle hydrostatic
• Weight[g] 1246
• Housing cylindrical
• Dimensions[mm] Ø 27 / L = 100
• Materials stainless steel (316Ti/1.4571); PA
