PI2798 \ efector 500 \ Pressure sensor \ PI-,25BREA01-MFRKG/US/ \ P \ DE

Details of PI2798 \ efector 500 \ Pressure sensor (Pressure Sensor) \PI-,25BREA01-MFRKG/US/      /P \ DE

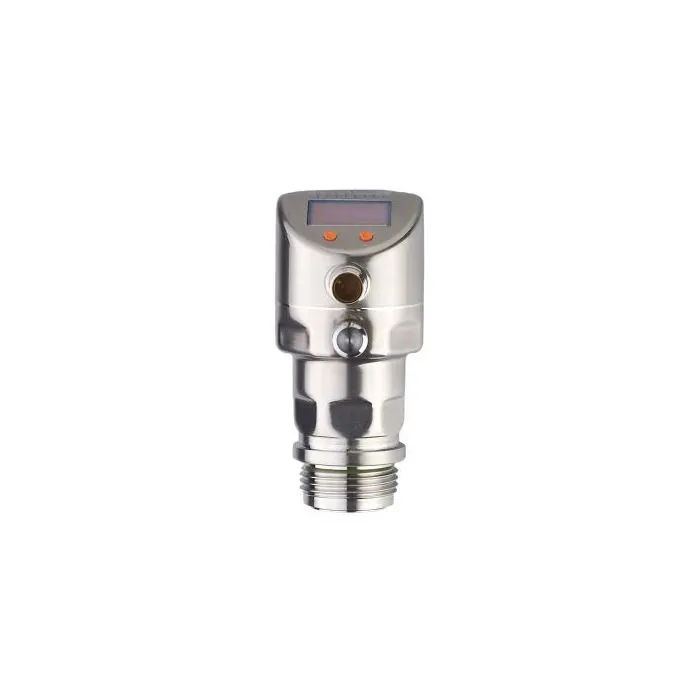

PI2798 \ efector 500 \ Pressure sensor (Pressure Sensor) \PI-,25BREA01-MFRKG/US/      /P \ DE is a pressure transmitter designed for food and beverage applications.

• The IO-Link system allows the sensor to be set as NO/NC or PNP/NPN according to your requirements, and historical data can also be reviewed.
• It supports both 2-wire and 3-wire wiring configurations.
• Output types include PNP/NPN and analog 4~20 mA.
• The installation type is Aseptoflex G1 inch thread and G1 Conical.
• The display is clear and can be adjusted at the sensor itself.
• Parameters can also be set directly on the sensor.
• Operating voltage: 20...32 VDC
• Maximum pressure measurement: 25 bar
• Dimensions: 50x105.8x64 mm.
• Dustproof and waterproof standards: IP67, IP68, IP69K

The PI2798 \ efector 500 \ Pressure sensor (Pressure Sensor) \PI-,25BREA01-MFRKG/US/      /P \ DE is used to measure pressure in tanks and pipelines, such as beer production processes, milk, fruit juice, and other beverage manufacturing industries.

Technical Data PI2798 \ efector 500 \ Pressure sensor (Pressure Sensor) \PI-,25BREA01-MFRKG/US/      /P \ DE

• Number of inputs and outputs : Number of digital outputs: 2; Number of analogue outputs: 1
• Measuring range : -0.0124...0.25 bar    -12.4...250 mbar    -5...100.4 inH2O    -1.24...25 kPa
• Process connection : threaded connection G 1 external thread Aseptoflex Vario
• Special feature : Gold-plated contacts
• Application : flush mountable for the food and beverage industry
• Media : viscous media and liquids with suspended particles; liquids and gases
• Medium temperature[°C] : -25...125; (145 max. 1h)
• Min. bursting pressure : 30000 mbar    12044 inH2O    3000 kPa
• Pressure rating : 6000 mbar    2400 inH2O    600 kPa
• Vacuum resistance : -1000 mbar    -0.1 MPa
• Type of pressure : relative pressure
• No dead space : yes
