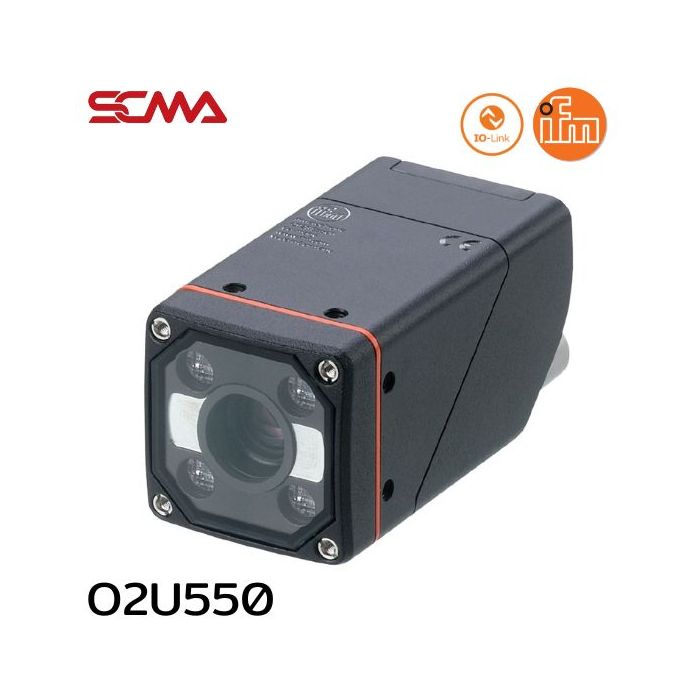

O2U550 \ effector 250 \ Object recognition \ O2UIRDKG/E1/E2/E4/IO/EF/GM/S/5A \ DE \

Details of O2U550 \ efector 250 \ Object recognition \ O2UIRDKG/E1/E2/E4/IO/EF/GM/S/5A \ DE \

O2U550 \ efector 250 \ Object recognition \ O2UIRDKG/E1/E2/E4/IO/EF/GM/S/5A \ DE \ from the brand ifm features object detection sensors using barcode reading and 2D code methods. It can communicate with ProfiNet, EtherNet/IP protocols and a two-dimensional sensor camera to analyze surface texture and shape as well as read codes and characters. This makes it versatile for interfacing and works seamlessly with controllers. Easy to use with software that includes application wizards and removable memory units.

Technical Data O2U550 \ efector 250 \ Object recognition \ O2UIRDKG/E1/E2/E4/IO/EF/GM/S/5A \ DE \

• Type of light : infrared light
• Image resolution[px] : 1280 x 960
• Max. reading rate [Hz] : 40
• Operating voltage[V] : 18...30 DC
• Wave length[nm] : 850
• Image sensor : CMOS image sensor black/white
• Number of digital outputs : 2
• Electrical design : PNP/NPN
• Ambient temperature[°C] : -10...50
• Protection : IP 65
• Dimensions[mm] : 45 x 45 x 86
• Electrical connection - Ethernet : Connector M12
• Electrical connection - supply : Connector M12
