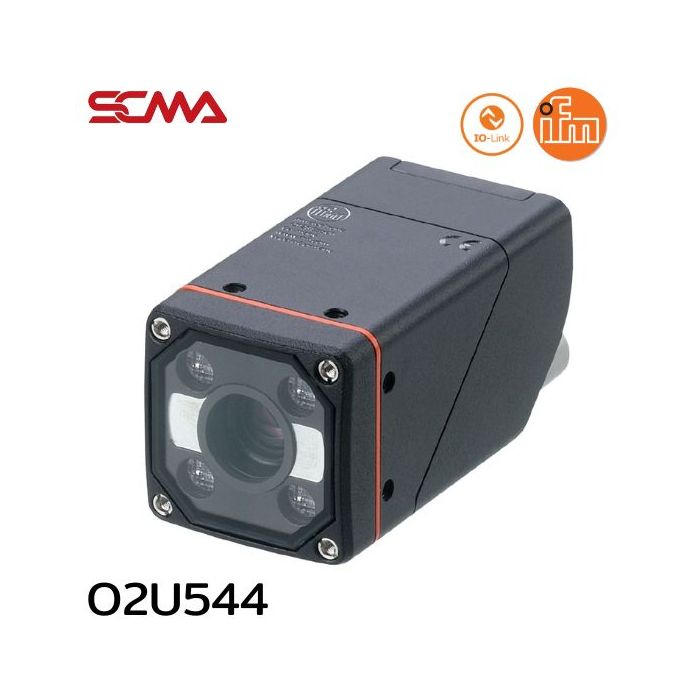

O2U544 \ efector 250 \ Object recognition \ O2UCRDKG/E1/E2/E4/IO/EF/GM/T/5A \ DE \ from ifm features object detection sensors using barcode and 2D code reading methods. It supports communication protocols such as ProfiNet, EtherNet/IP, and sensor image analysis to evaluate surface texture and shape, read codes and characters. The interface is versatile and integrates smoothly with controllers. Easy to use with application creation software and removable memory.

Technical Data O2U544 \ efector 250 \ Object recognition \ O2UCRDKG/E1/E2/E4/IO/EF/GM/T/5A \ DE \

• Type of light : RGBW
• Image resolution[px] : 1280 x 960
• Max. reading rate [Hz] : 40
• Operating voltage[V] : 18...30 DC
• Wave length[nm] : 625; 525; 453
• Image sensor : CMOS image sensor black/white
• Number of digital outputs : 2
• Electrical design : PNP/NPN
• Ambient temperature[°C] : -10...50
• Protection : IP 65
• Dimensions[mm] : 45 x 45 x 86
• Electrical connection - Ethernet : Connector M12
• Electrical connection - supply : Connector M12
