O2U540 \ effector 250 \ Object recognition \ O2UCRDKG/E1/E2/E4/IO/EF/GM/S/5A \ DE \

Details O2U540 \ efector 250 \ Object recognition \ O2UCRDKG/E1/E2/E4/IO/EF/GM/S/5A \ DE \

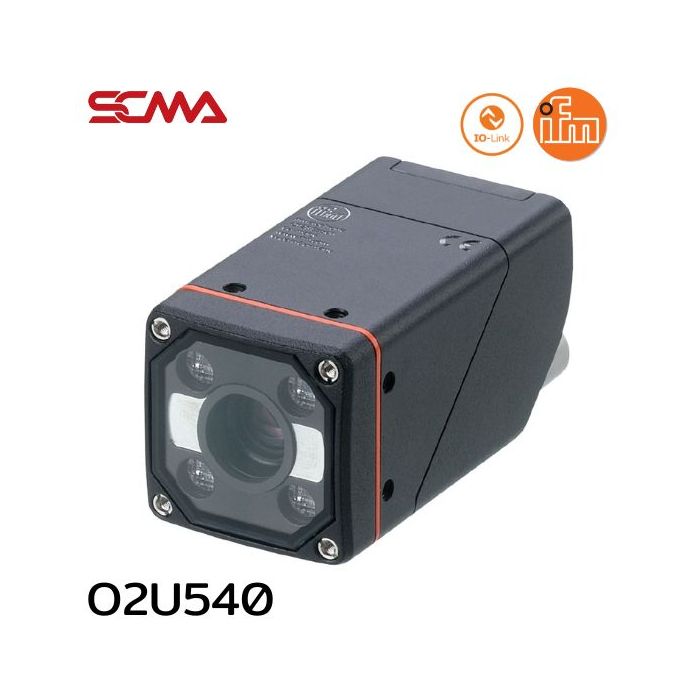

O2U540 \ efector 250 \ Object recognition \ O2UCRDKG/E1/E2/E4/IO/EF/GM/S/5A \ DE \ from the brand ifm, an object detection sensor using barcode and 2D code reading technology. It supports communication protocols such as ProfiNet and EtherNet/IP. The 2D image sensor allows for surface analysis, shape recognition, and code and character reading. It offers versatile interfacing capabilities that work seamlessly with controllers. Easy to use with application creation software and removable memory.

Technical Data O2U540 \ efector 250 \ Object recognition \ O2UCRDKG/E1/E2/E4/IO/EF/GM/S/5A \ DE \

• Type of light : RGBW
• Image resolution[px] : 1280 x 960
• Max. reading rate [Hz] : 40
• Operating voltage[V] : 18...30 DC
• Wave length[nm] : 625; 525; 453
• Image sensor : CMOS image sensor black/white
• Number of digital outputs : 2
• Electrical design : PNP/NPN
• Ambient temperature[°C] : -10...50
• Protection : IP 65
• Dimensions[mm] : 45 x 45 x 86
• Electrical connection - Ethernet : Connector M12
• Electrical connection - supply : Connector M12
