O2U534 \ effector 250 \ Object recognition \ O2URRDKG/E1/E2/E4/IO/EF/GM/T/5A \ DE \

Details of O2U534 \ efector 250 \ Object recognition \ O2URRDKG/E1/E2/E4/IO/EF/GM/T/5A \ DE \

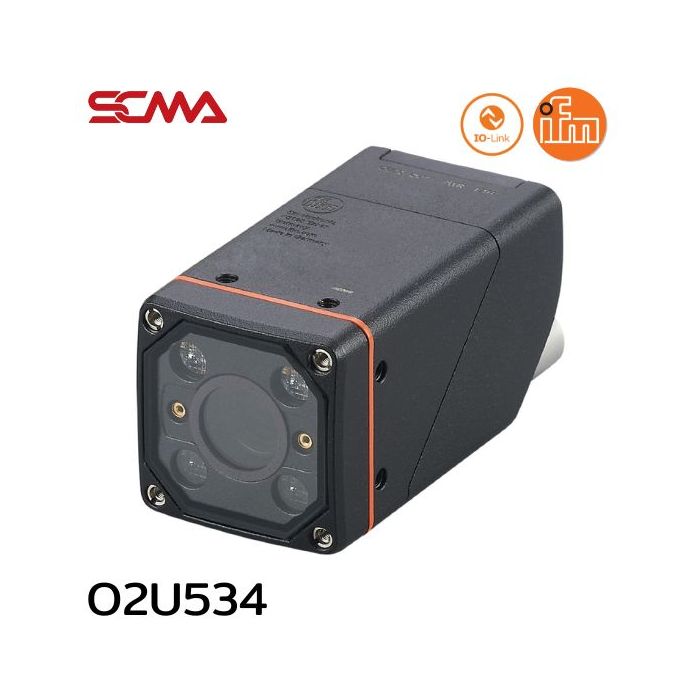

O2U534 \ efector 250 \ Object recognition \ O2URRDKG/E1/E2/E4/IO/EF/GM/T/5A \ DE \ from the brand ifm, an object detection sensor that uses barcode and 2D code reading technology. It can communicate with ProfiNet, EtherNet/IP protocols and has a two-dimensional image sensor to analyze surface texture and shape as well as read codes and characters. This makes it versatile for interfacing and works seamlessly with controllers. Easy to use with application creation software and removable memory.

Technical Data O2U534 \ efector 250 \ Object recognition \ O2URRDKG/E1/E2/E4/IO/EF/GM/T/5A \ DE \

• Type of light : red light
• Image resolution[px] : 1280 x 960
• Max. reading rate [Hz] : 40
• Operating voltage[V] : 18...30 DC
• Wave length[nm] : 617
• Image sensor : CMOS
• image sensor black/white
• Number of digital outputs : 2
• Electrical design : PNP/NPN
• Ambient temperature[°C] : -10...50
• Protection : IP 65
• Dimensions[mm] : 45 x 45 x 86
• Electrical connection - Ethernet : Connector M12
• Electrical connection - supply : Connector M12
