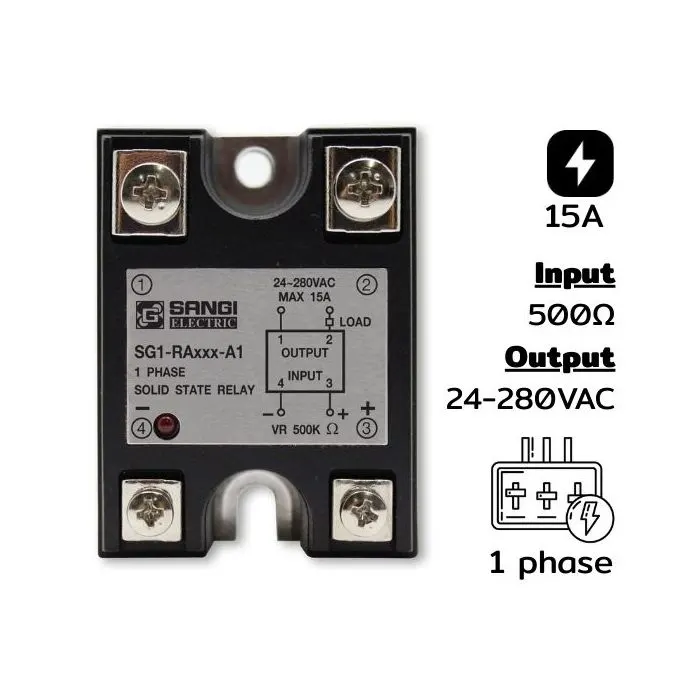

SG1-RA15-A1 Single phases 24-280VAC, current 15A, Input VR 0…500 , Phase Contr Solid State Relay (SSR Single Phase) controlled by Potentiometer and has a Phase Control output. It is used to control AC voltage by adjusting the time window for current flow through the load such as heaters or motors. The details can be described as follows:

Working Principle

The Phase Control SSR works by delaying the Triac's turn-on timing within each half cycle of AC power: AC power has a sine wave (50/60Hz) characteristic. The SSR input is connected to a Potentiometer which sets the "phase angle" at which current starts flowing. The longer the delay (the later it turns on after zero crossing), the less energy output → lower heat/speed. If the delay is short (turns on early) → more energy output → higher heat/speed, similar to dimming an incandescent light bulb or controlling heater temperature.

Specifications

• Type of power: AC Single Phase (e.g., 220VAC)
• Controlled by: Potentiometer (generally 0–100kΩ)
• Phase Control: Phase Angle Control (0–180°)
• Output: TRIAC type → no mechanical contact
• Suitable load: Resistive (heaters), Inductive (small motors)
• No click sound: Silent operation
• Fast response: No delay from mechanical parts
• General Applications:
• Heaters – precise temperature control
• Small AC Motors – speed control
• Light Dimmers – control brightness of incandescent/halogen bulbs
• Industrial Ovens – fine-tune heating
• Ventilators with Speed Control – AC voltage adjustment

Safety Recommendations

• A heat sink or cooling system should be used.
• Do not exceed the SSR's load capacity.
• Be cautious of touching the SSR output – high voltage is present continuously when the circuit is open.
