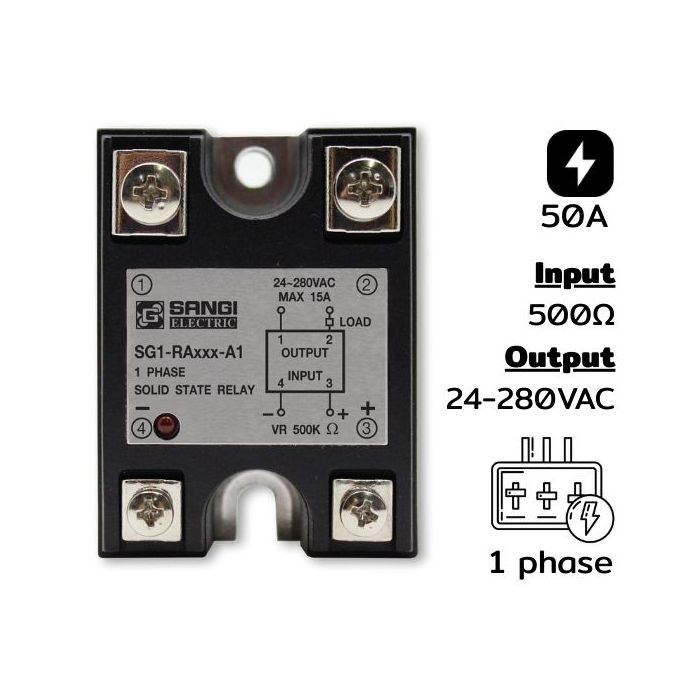

SG1-RA50-A1 Single phase 24-280VAC, Input VR 0…500, Phase Control

Details of SG1-RA50-A1 Single phases 24-280VAC, current 50A, Input VR 0…500 , Phase Control

SG1-RA50-A1 Single phases 24-280VAC, current 50A, Input VR 0…500 , Phase Control Solid State Relay (SSR Single Phase) controlled by Potentiometer and has Output as Phase Control. It is a device used to control AC voltage by adjusting the time period during which the load receives power, such as heaters or motors. The details can be explained as follows:

Working Principle

Phase Control SSR works by delaying the timing of Triac opening within each half cycle of AC electricity: AC electricity has a sine wave (50/60Hz) characteristic. The SSR input is connected to Potentiometer which sets the "phase angle" at which current starts flowing. The longer the delay (opening later after zero crossing), less power is output → lower heat/speed. If delayed shorter (opened earlier) → more power output → higher heat/speed, similar to dimming an incandescent light bulb or controlling heater temperature.

Specifications

• Type of electricity: AC Single Phase (e.g., 220VAC)
• Controlled by: Potentiometer (generally 0–100kΩ)
• Phase Control: Phase Angle Control (0–180°)
• Output: Triac type → no mechanical contact
• Suitable load: Resistive (heaters), Inductive (small motors)
• No click sound: Silent operation
• Fast response: No delay from mechanical parts. General applications:
• Heaters – precise temperature control
• Small AC Motors – speed control
• Light Dimmers – control brightness of incandescent/halogen bulbs
• Industrial ovens – fine-tune heating
• Voltage-controlled fans – variable speed control

Safety Recommendations

• Must have heat sink or cooling system
• Avoid overloading SSR
• Beware of touching SSR output – high voltage present when circuit is open

Technical Data SG1-RA50-A1 Single phases 24-280VAC, current 50A, Input VR 0…500 , Phase Control
