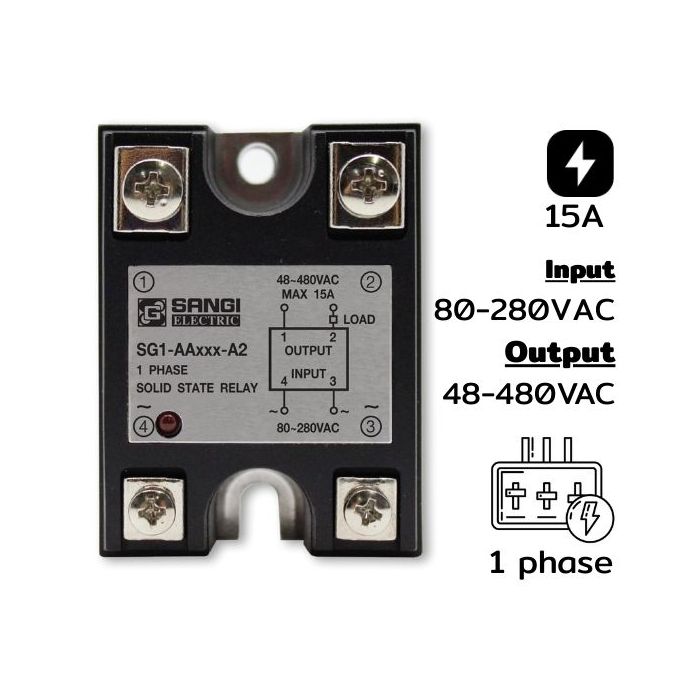

SG1-AA015-A2 Single phases Input 80-280VAC Output 48-480VAC 15A Zero C

Details of SG1-AA015-A2 Single Phase Input 80-280VAC Output 48-480VAC Current 15A Zero C

SG1-AA015-A2 Single phase input 80-280VAC output 48-480VAC current 15A Zero C Solid State Relay (Input AC, Output AC) – Operation and Features The operation of a solid state relay with an AC input and an AC output involves controlling the switching of an AC load using an alternating current control signal.

Main Components

• Input AC (e.g., 90–280VAC): Receives AC control signals
• Opto-Isolator: Separates the control signal from the power circuit for safety
• Trigger Circuit: When a control signal is received, it activates the drive circuit to operate the power section
• Output AC (e.g., 24–480VAC): Controls the delivery of current to the load such as heaters, motors, lamps, etc.

Type Input Voltage Control AC (e.g. 90-280VAC)

• Output Type AC Load: 24–480VAC or 24–240VAC depending on the model
• Frequency 50/60Hz
• Loading Capacity Typically supports from 2A to 100A (depending on the model and Heat Sink)
• Cooling Requires a Heat Sink or fan in case of high current loads
• Isolation Prevents interference signals and increases installation safety, usually DIN Rail or mounting plate type
• Response Time Approximately 1–2 milliseconds

Advantages

• No moving parts – No wear and tear
• Silent operation
• Durable against vibration and dust
• Able to control loads accurately and quickly
• Long service life

Cautions

• Select the SSR suitable for the load and operating voltage
• Beware of leakage current that may occur when the SSR is in the "off" state
• Temperature: Proper cooling must be ensured, otherwise the equipment may be damaged
• Control electric heaters in oven systems, lighting systems, industrial machinery systems, automatic temperature control systems, motor control systems (load does not exceed specified capacity)

Tech Data SG1-AA015-A2 Single Phase Input 80-280VAC Output 48-480VAC Current 15A Zero C
