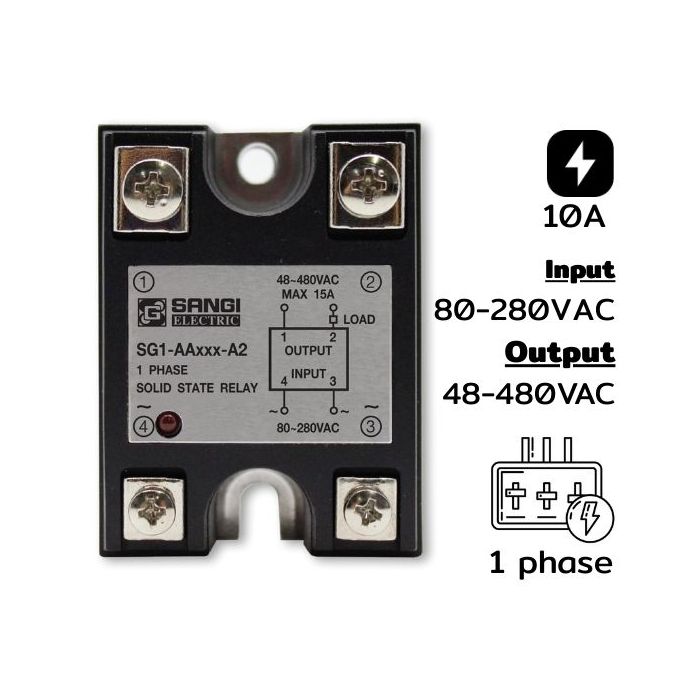

SG1-AA010-A2 Single phases Input 80-280VAC Output 48-480VAC 10A Zero C

Details of SG1-AA010-A2 Single Phase Input 80-280VAC Output 48-480VAC Current 10A Zero C

SG1-AA010-A2 Single phase input 80-280VAC output 48-480VAC current 10A zero c solid state relay single phase (Input AC, Output AC) – Working principle and features The working principle of the Solid State Relay with Input as AC and Output as AC is used to control the on-off operation of AC loads by utilizing an alternating current signal (AC Control Signal)

Main Components

• Input AC (e.g., 90–280VAC): Receives AC control signals.
• Opto-Isolator: Separates the control signal from the power section for safety.
• Trigger Circuit: When a control signal is received, it activates the drive circuit to operate the power section.
• Output AC (e.g., 24–480VAC): Controls the delivery of current to loads such as heaters, motors, and lamps.

Type Input Voltage Control AC (e.g. 90-280VAC)

• Output Type: Alternating Current Load (AC Load: 24–480VAC or 24–240VAC depending on the model).
• Frequency: 50/60Hz.
• Loading Capacity: Typically supports from 2A to 100A (depending on the model and Heat Sink).
• Cooling Requirement: Must use a Heat Sink or fan in case of high current loads.
• Isolation: Prevents signal interference and enhances installation safety, usually DIN Rail or mounting plate type.
• Response Time: Approximately 1–2 milliseconds.

Advantages

• No moving parts – No wear and tear.
• Silent operation.
• Durable against vibration and dust.
• Able to control loads accurately and quickly.
• Long service life.

Cautions

• Select the SSR appropriately for the load and operating voltage.
• Beware of leakage current that may occur when the SSR is in the "off" state.
• Temperature: Proper cooling must be ensured, otherwise the equipment may be damaged.
• Control electric heaters in oven systems, lighting systems, industrial machinery systems, automatic temperature control systems, motor control systems (load not exceeding specified capacity).

Tech Data SG1-AA010-A2 Single Phase Input 80-280VAC Output 48-480VAC Current 10A Zero C
