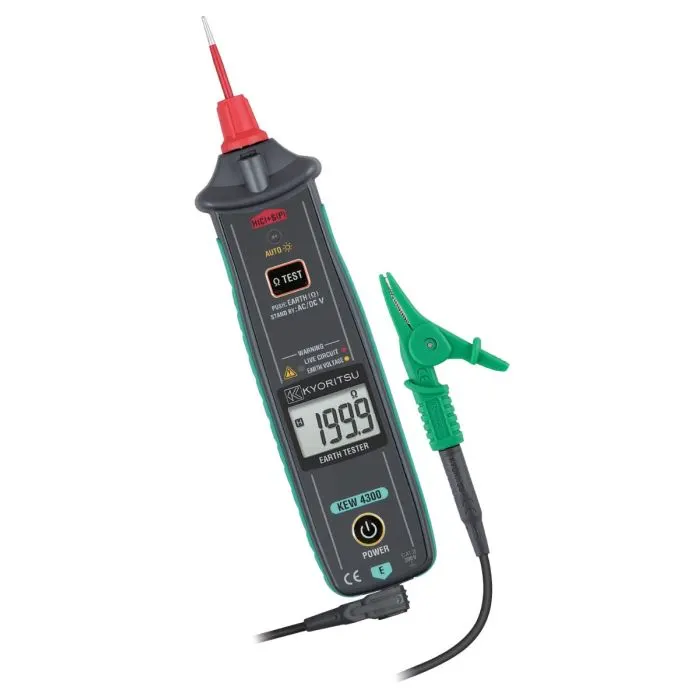

KEW 4300 KYORITSU Simplified Earth Testers

KYORITSU Earth Resistance Tester Model KEW 4300 Features

• Measures earth resistance using a two-pole method.
• Suitable for measuring earth resistance at wall sockets between N and E terminals.
• Measurement range: 200Ω / 2000Ω
• Audible alarm sounds when measured value equals or is less than 100Ω.
• LED lights up when high levels of earth voltage are detected.
• Alarm signals when system voltage exceeds 30V.
• Includes an LED flashlight that turns on and off automatically in dark areas.
• Maximum test current is 2mA, which will not trigger RCD breakers.

KYORITSU Earth Resistance Tester Model KEW 4300 Technical Data

• Earth resistance ranges : 200.0 / 2000Ω (Auto ranging) ±3%rdg±5dgt
• Voltage ranges : AC : 5.0~300.0V (45~65Hz) ±1%rdg±4dgt DC : ±5.0~300.0V ±1%rdg±8dgt
• Applicable standards : IEC 61010-1 CAT III 300V pollution degree 2, IEC 61010-031, 61557-1, -5, IEC 61326-1, 2- 2, IEC 60529 (IP40)
• Power source : LR6 (AA) (1.5V) x 2pcs
• Dimensions / Weight : 232(L) x 51(W) x 42(D)mm / 220g approx. (including battery)
• Included Accessories : 7248 (Test lead with Alligator clip and Flat test probe), 8072 (CAT II Standard prod), 8253 (CAT III Standard prod), 8017 (Extension prod long), (Carrying case), Instruction manual, LR6 (AA) x 2
