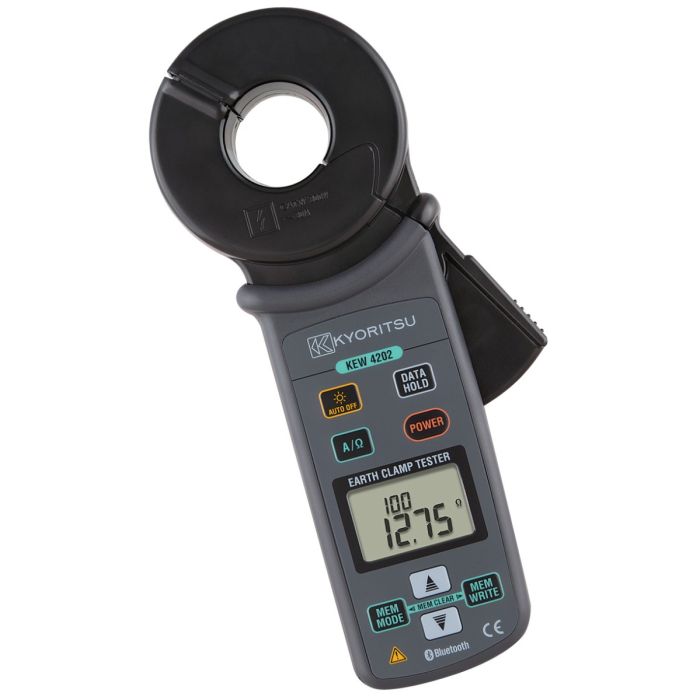

KEW 4202 KYORITSU Earth Clamp Testers

Details of KYORITSU Earth Clamp Testers Model KEW 4202

• Measures earth resistance between 0.05~1500Ω without the need for an auxiliary ground
• Reads True RMS AC current and leakage current from 0.1mA~30.0A AC
• Noise filter function reduces electrical interference, with a "Noise" symbol appearing in highly noisy environments
• Features Data Hold, Buzzer, and Backlight functions
• Able to store and display up to 100 measurement data points
• Built-in Bluetooth communication through Android devices (KEW 4202)

Tech Specifications of KYORITSU Earth Clamp Testers Model KEW 4202

• Earth resistance : 20.00 / 200.0 / 1500Ω(Auto range)
• Accuracy : ±1.5%±0.05Ω (0.00~20.99Ω) / ±2%±0.5Ω (16.0~99.9Ω) / ±3%±2Ω (100.0~209.9Ω) / ±5%±5Ω (160~399Ω) / ±10%±10Ω (400~599Ω) Values are displayed, but accuracy isn't guaranteed (600~1580Ω)
• AC Current (Auto Range) : 100.0 / 1000mA / 10.00 / 30.0A, ±2%±0.7mA (0.0~104.9mA), ±2% (80mA~31.5A) (50Hz/60Hz)
• Conductor size : Approx. 32mm
• Communication Interface : Bluetooth Ver2.1 + EDR Class2 (KEW 4202 Only)
• Applicable standards : IEC 61010-1 CAT IV 300V Pollution degree2, IEC 61010-2-032, IEC 61326 (EMC)
• Included Accessories : R6 x 4, Instruction manual, 8304 (Resister for Operation check), Carrying case (Hard)
