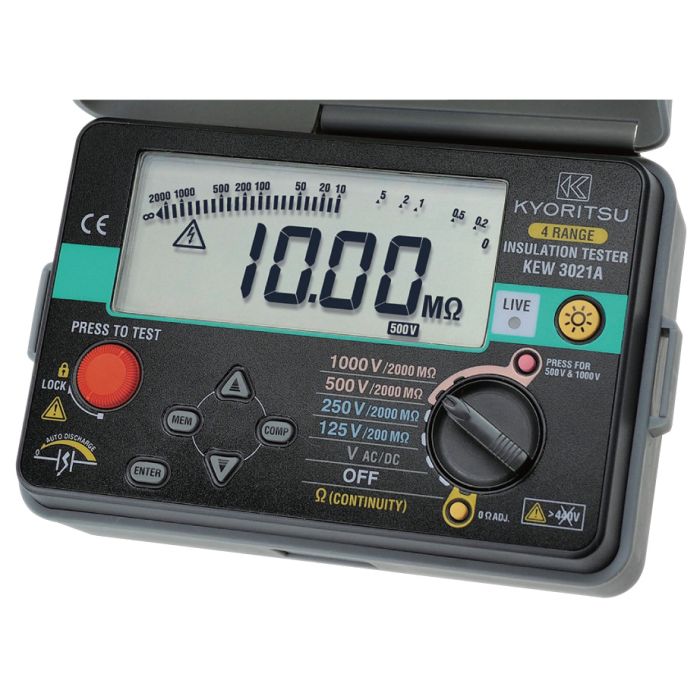

KEW 3021A KYORITSU Digital Insulation Testers

Features of KYORITSU Insulation Tester Model KEW 3021A

KYORITSU Digital Insulation Testers (Below 1kV) - Model KEW 3021A

• 3 IN 1 Function : Measures insulation resistance with 4 voltage ranges, continuity, and test current of 200mA during continuity measurement.
• Pass/Fail comparison display indicator and sound signal
• Zero Ω setting for insulation resistance measurement
• Memory capacity to store up to 99 values
• LCD screen with backlight for reading in dark environments
• Safety Lock system prevents accidental errors during measurement (500V / 10000V)

Technical Data of KYORITSU Insulation Tester Model KEW 3021A

• Test voltage : 125V, 250V, 500V, 1000V
• Measuring range (Auto range) : 4.000 / 40.00 / 200.0MΩ / 4.000 / 40.00 / 400.0 / 2000MΩ
• Mid-scale value : 5MΩ, 50MΩ
• Accuracy : ±2%rdg ±6dgt
• Continuity range : 40.00 / 400.0Ω ±2%rdg ±8dgt
• Voltage range : AC : 20~600V (50/60Hz) / DC : ±20~±600V Accuracy ±3%rdg ±6dgt
• Compliance standards : IEC 61010-1 CAT III 600V, IEC 61557-1, 2, 4, IEC 61326-1 (EMC), IEC 60529 (IP40)
• Included Accessories : 7150A (Remote control switch set), 9121 (Shoulder strap), R6 (AA) x 6, Instruction Manual
