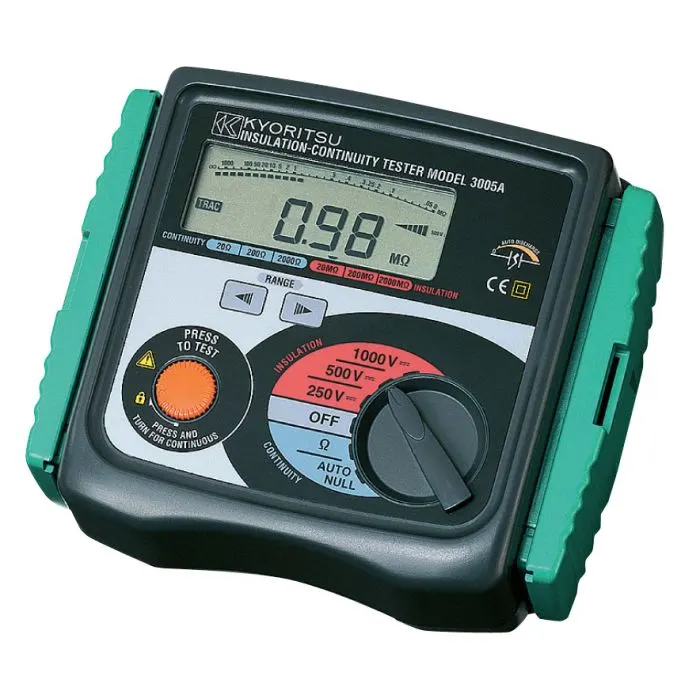

3005A KYORITSU Digital Insulation Testers

Features of KYORITSU Insulation Tester Model 3005A

KYORITSU Insulation Tester Model 3005A ANALOG INSULATION TESTERS (1kV Below)

• Displays AC voltage of the circuit being measured with a flashing numeric display
• Has an automatic zero adjustment system to reduce the impact from test leads before measuring continuity
• Provides an alarm if the circuit being measured still has voltage present
• An automatic discharge function will discharge any residual charge in the circuit when releasing the Test button
• The test current for continuity measurement is 200mA, as per IEC 61557 standard
• The minimum test current for insulation resistance measurement is 1mA, according to the IEC 61557 standard

Technical Data of KYORITSU Insulation Tester Model 3005A

• Test voltage 250V / 500V / 1000V
• Measuring ranges 20MΩ / 200MΩ / 2000MΩ
• Accuracy ±1.5%rdg ±5dgt (20MΩ / 200MΩ), ±10%rdg ±3dgt (2000MΩ) Continuity measuring range 20 / 200Ω / 2000Ω
• Accuracy ±1.5%rdg ±5dgt (20Ω) / ±1.5%rdg ±3dgt (200Ω / 2000Ω)
• AC voltage range 0~600VAC Accuracy ±5%rdg ±3dgt Safety Standard IEC 61010-1 CAT III 300V Pollution Degree 2, IEC 61010-2-031, IEC 61557-1/2/4
• IP Rating / EMC Standard IEC 60529-IP54 / IEC 61326-1
• Included Accessories 7122B (Test leads), 8923 (F500mA/600V fuse) x 2, R6 (AA) x 8, Shoulder Strap, Instruction Manual
