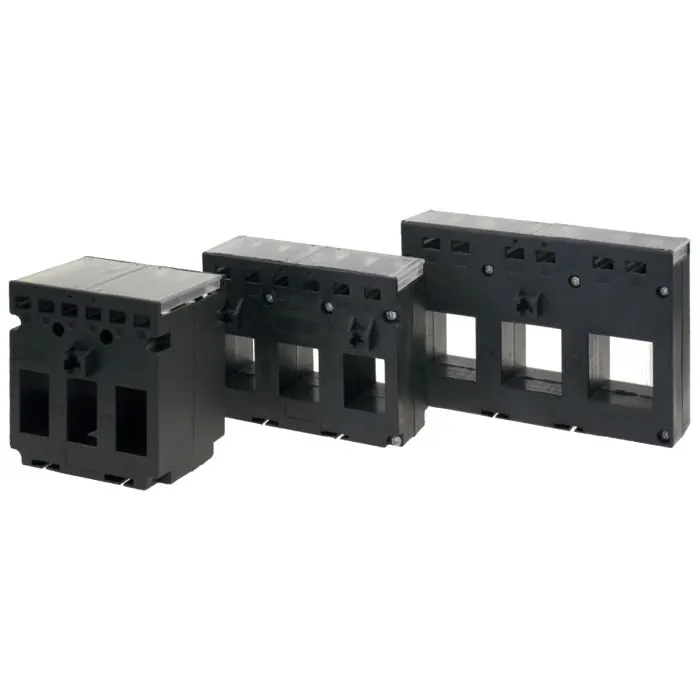

KCT-3P-45, 630/5A KEPLER Current Transformer
Special Price THB 1,040.00 Regular Price THB 1,300.00
In stock
SKU
034971
In stock: 19 pcs
Delivery within: 03/09/2569
🚚 Free shipping on orders over ฿5,000! (normally ฿100)
Current Transformer, Split Core Current Transformer, Clamp-On Current Transformer, External Mount Current Transformer, Outdoor Current Transformer, CT
*Price does not include VAT
Features of KEPLER Current Transformer Plug-in Type Model KCT-3P-45, 630/5A
- Is a plug-in type current transformer for three-phase in one unit
- Current rating 630/5A
- Easy to install, convenient and quick, can be mounted on DIN rail immediately
- Compact size, cost-effective
- High accuracy Class 1.0
- Maximum operating voltage rating 720VAC / 50-60Hz
- Made from PC/UL94-V0 material
- Manufactured to IEC/EN60044-1 standard
Technical Data KEPLER Current Transformer Plug-in Type Model KCT-3P-45, 630/5A
- Current rating 630/5A
- Burden (VA) 2.5
- Accuracy Class 0.5 from 20% to 120% of rated current
- Frequency 50-60Hz
- Phase angle Less than 2 degrees at 50% of rated current
- Insulation voltage 600VAC
- Maximum primary voltage 5000Vac (Insulated Conductor)
- Dielectric strength 2.5kV / 1mA (1 min)
- Operating temperature -15C~60⁰C
- Operating humidity <85%
- Casematerial PC / UL94-V0
- Bobbin PBT
- Internal structure Epoxy
| จำนวนวันจัดส่ง | 3 วัน |
|---|---|
| Special Price | THB 1,040.00 |
