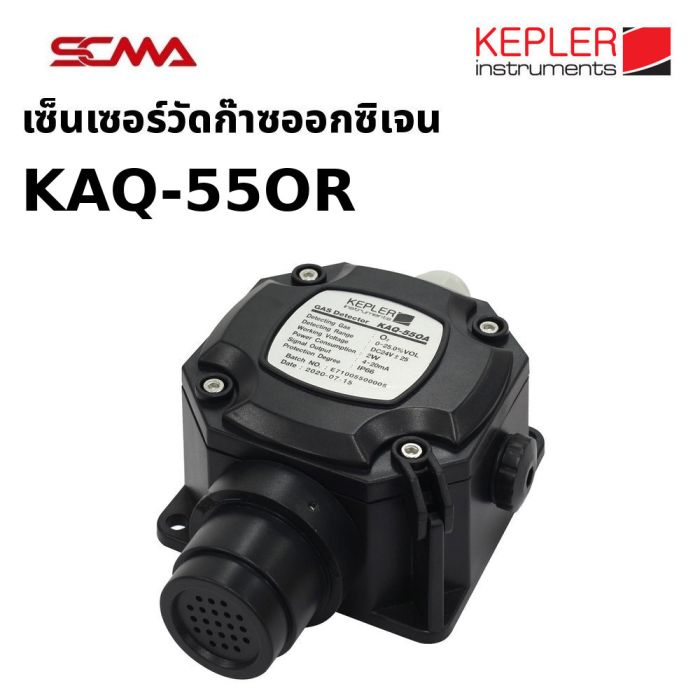

KAQ-55OR KEPLER O2 Fixed Gas Detector

Details of KEPLER Oxygen (O2) Gas Detector Model KAQ-55OR

The KEPLER Oxygen (O2) Gas Detector, model KAQ-55OR is an oxygen gas detector.

• Oxygen (O2) gas sensor
• RS485 interface available
• Dust and water protection standard IP66
• Sleek design for easy installation
• Affordable with excellent performance
• Best suited for installations in environments that do not require explosion-proof measures
• Used in workplace safety applications to prevent hazards from oxygen deficiency, toxins, toxic gases, confined spaces and flammable gas explosions

Tech Specifications of KEPLER Oxygen (O2) Gas Detector Model KAQ-55OR

• Measuring gas : O2 (Oxygen)
• Measuring range : 0~25%VOL
• Sensor type : Electrochemical
• Resolution : 0.1%VOL
• Sensor life : 1 year
• Measuring method : Diffuse naturally
• Response time : Toxic gas and O2 : T90≤60s / Combustible : T90≤30s
• Signal output : RS485
• Alarm output signal : 2 programmable relays for 4~20mA type
• Cable / distance : RS485 type : 1.5 mm2, 4 wire, shielded, 1000m (maximum)
• Mounting type : Wall mounted
• Working temperature : Toxic gas : -20°C~+50°C / Combustible : -40°C~+70°C
• Working humidity : <95%RH (no condensation)
• Operation voltage : 24VDC ±25%
• Consumption : <2W
• Housing material : Plastics
• Approval / IP : CE / IP66
• Dimension and weight : 165 x 118 x 62mm / about 0.5kg
