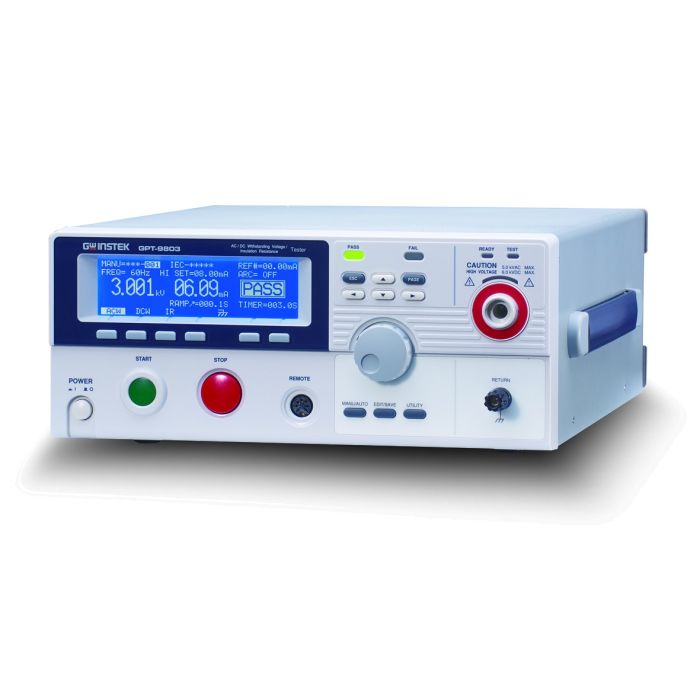

GPT-9802 GW instek Safety Testers (Hipot Test) Electrical Safety Tester

Details of GW INSTEK Electrical Safety Tester (Safety Testers (Hipot Test)) Model GPT-9802 Electrical Safety Tester

GW INSTEK Electrical Safety Tester (Safety Testers (Hipot Test)) Model GPT-9802 Electrical Safety Tester is a desktop safety testing instrument suitable for various industrial production lines, supporting up to two types of tests.

• AC Hipot test measures insulation resistance or dielectric withstand voltage at high AC voltage
• DC Hipot test measures insulation resistance or dielectric withstand voltage at high DC voltage

Technical Specifications of GW INSTEK Electrical Safety Tester (Safety Testers (Hipot Test)) Model GPT-9802 Electrical Safety Tester

• Provides a solid foundation for reliable, safe and practical safety compliance testing
• AC withstanding from 0.050KV to 5.000KV, DC withstanding from 0.050KV to 6.000KV
• RS-232C, USB, signal I/O and GPIB (optional) interface, 100 memory blocks for test condition setting
• High accuracy, high efficiency, high stability output and high resolution testing performance
• AC power supply of 100V/120V/220V/230V ±10%, 50/60Hz, dimensions of 330 (W) x 148 (H) x 452mm(D), weight of 19Kg
• Multiple protection mechanisms, user-friendly interface, power consumption of 500VA
• 240x64 ice blue dot matrix LCD, manual/auto mode, safety interlock function
• Function key for quick selection, high intensity flash for caution and status indication
• Zero crossing turn-on operation with controllable ramp-up time, true RMS current measurement
• Current measuring range of 1µA, voltage setting range of 2V, IEC, EN, UL, CSA, GB, JIS approved
