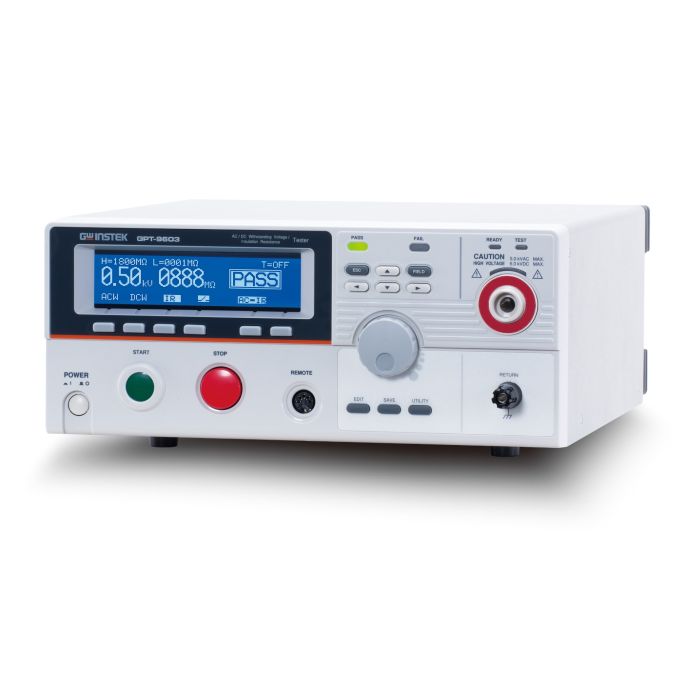

GPT-9603 GW instek Safety Testers (Hipot Test) Economical Safety Tester

Details of GW INSTEK Electrical Safety Tester (Hipot Test) Model GPT-9603 Economical Safety Tester

GW INSTEK Electrical Safety Tester (Hipot Test) Model GPT-9603 Economical Safety Tester is an electrical voltage tester that meets safety standards such as IEC, EN, UL, CSA, GB, JIS. It can test AC voltage and comes with a high-efficiency PWM amplifier.

Technical Data of GW INSTEK Electrical Safety Tester (Hipot Test) Model GPT-9603 Economical Safety Tester

• AC withstand voltage range: 0.10 to 5.00KV, DC withstand voltage range: 0.10 to 6.00KV, insulation resistance range: 1 to 2000Mohm
• 240 x 48 Ice blue dot matrix LCD, high efficiency and stable output
• Automatic W-I or I-W mode, ARC detection, lightweight design and easy to operate
• True RMS current measurement, safety interlock function, simple AUTO mode
• Zero crossing turn-on operation protects the device under test from surge voltage impact
• PWM amplifier to enhance power efficiency and reliable testing
• Automatically switches input source for universal input voltage
• Remote terminal and signal I/O interface
• AC power source: 100V-120V/220V-240V ±10%, 50/60Hz, Power consumption: 400VA
• Dimensions: 330mm (W) x 148mm (H) x 385mm(D)
• Weight: 9Kg
